Unit · AXIAL-PISTON PUMP
AA10VO60DFR1/52R-PSD62N00-S2338R902501135
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DFR1/52R-PSD62N00-S2338, material number R902501135. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62). Through drive: without through drive (N00). Special version no. 2338.
- Number
- R902501135
- Type code
- AA10VO60DFR1/52R-PSD62N00-S2338
- Group
- A10VO 60
- Edition
- 06/2020

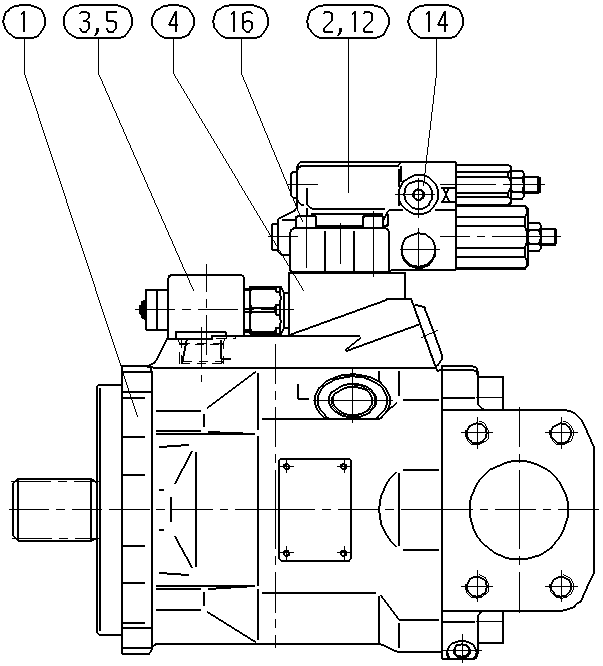

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902405815 | BASE UNIT Assembly parts list →L | 1 | ||
| R902449481 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R901070050 | DIRECTIONAL SPOOL VALVE | 1 | ||
| R902501004 | INTERMEDIATE PLATE | 1 | ||
| R900729189 | SOLENOID COIL | 1 | ||
| R902434482 | SEAL | 2 | ||
| R910764647 | SCREW PLUG | 1 | ||
| R902650500 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 4-hole | D |
| Working port | SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite | 62 |
| Through drive | Without through drive | N00 |
