Unit · BASE UNIT

G AA10VSO 45 OV /31R-VKC62N00 -SO239R902501148

Base unit Bosch Rexroth series A10VSO, type code GAA10VSO45OV/31R-VKC62N00-SO239, material number R902501148. Nominal size: NG 45. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00). Special version no. 239.

Number: R902501148
Type code: G AA10VSO 45 OV /31R-VKC62N00 -SO239
Group: A10VSO 45
Edition: 06/2020

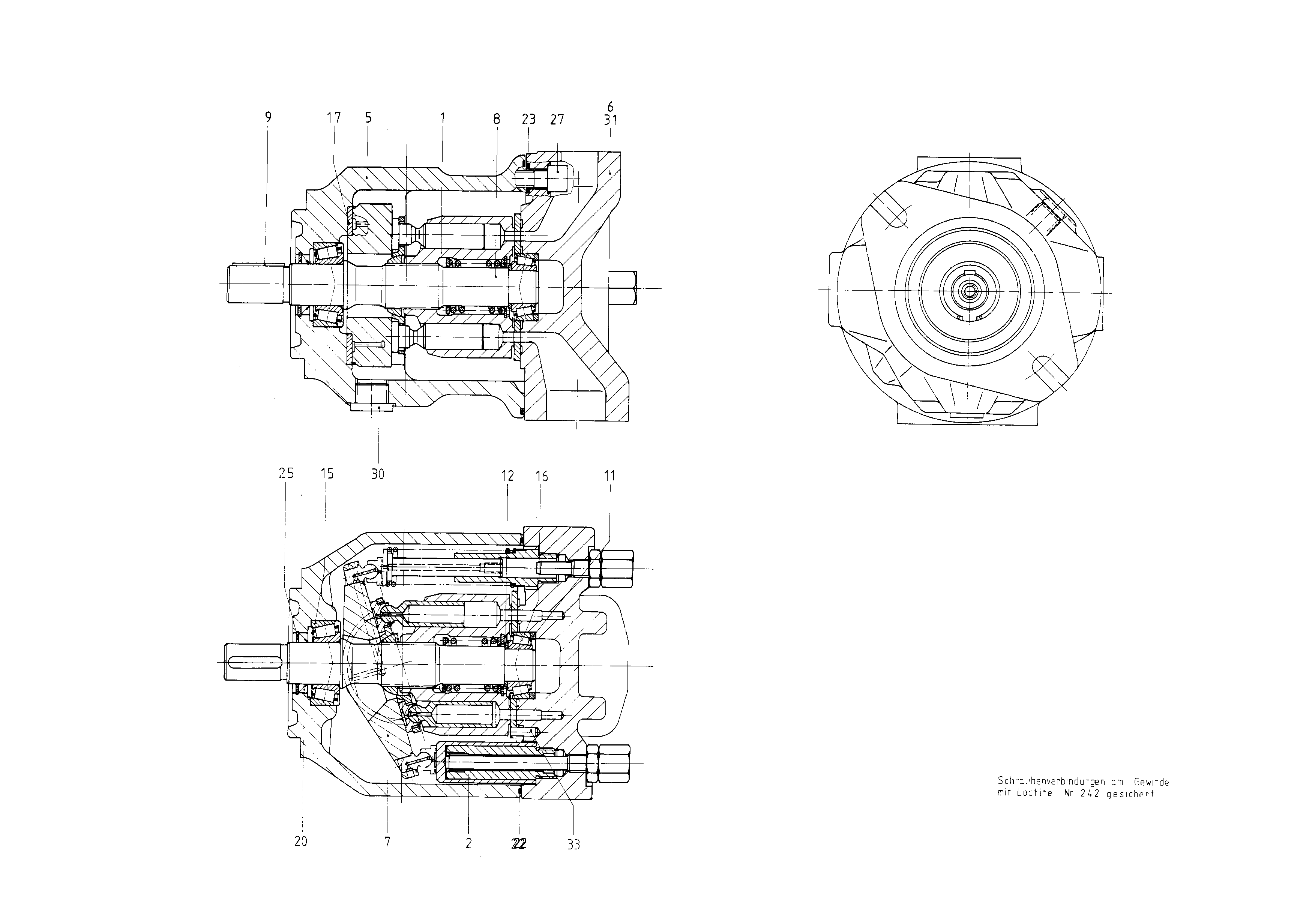

G AA10VSO 45 OV /31R-VKC62N00 -SO239 — Drawing

Pos.	Number	Name	Qty
	R902559903	ROTARY GROUP Assembly parts list →L	1
	R902538181	ADJUSTING PIECE Assembly parts list →L	1
	R902546050	PUMP HOUSING	1
6	R902534382	CONNECTION PLATE	1
7	R910961024	SWASH PLATE Assembly parts list →L	1
8	R902417380	DRIVE SHAFT	1
	R910749265	PARALLEL KEY	1
	R910938955	ADJUSTMENT SHIM	1
	R910704946	TAPERED-ROLLER BEARING	1
16	R910704954	TAPERED-ROLLER BEARING	1
	R910900198	BEARING SHELL	2
	R910793671	SHAFT SEALING RINGD	1
22	R910793698	O-RINGD	1
	R913052111	R-RINGD	4
25	R902403814	RETAINING RING	1
27	R910220264	SOCKET HEAD CAP SCREW	4
	R910967343	SCREW PLUGD	1
	R909831318	DOUBLE BREAK-OFF PLUG	1
	R902533908	STRAIGHT PIN	1
34	R913011609	SCREW PLUG	1

Parameters from the type code

Item	Meaning	Code
Operating mode	Pump, open circuit	O
Size (NG)	45	45
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	Parallel keyed shaft permissible through-drive torque ISO 3019-1	K
Mounting flange	ISO 3019-1 2-hole	C
Working port	SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite	62
Through drive	Without through drive	N00

Parameters from the type code

Other versions 3
