Unit · AXIAL-PISTON PUMP
AEAA10VSO 71 DFR /31L-VSC92K01R902501179
Axial piston pump Bosch Rexroth series A10VSO, type code AEAA10VSO71DFR/31L-VSC92K01, material number R902501179. Nominal size: NG 71. Version: HFA, HFB, HFC hydraulic fluid (E). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread (92). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01).
- Number
- R902501179
- Type code
- AEAA10VSO 71 DFR /31L-VSC92K01
- Group
- A10VSO 71
- Edition
- 07/2020

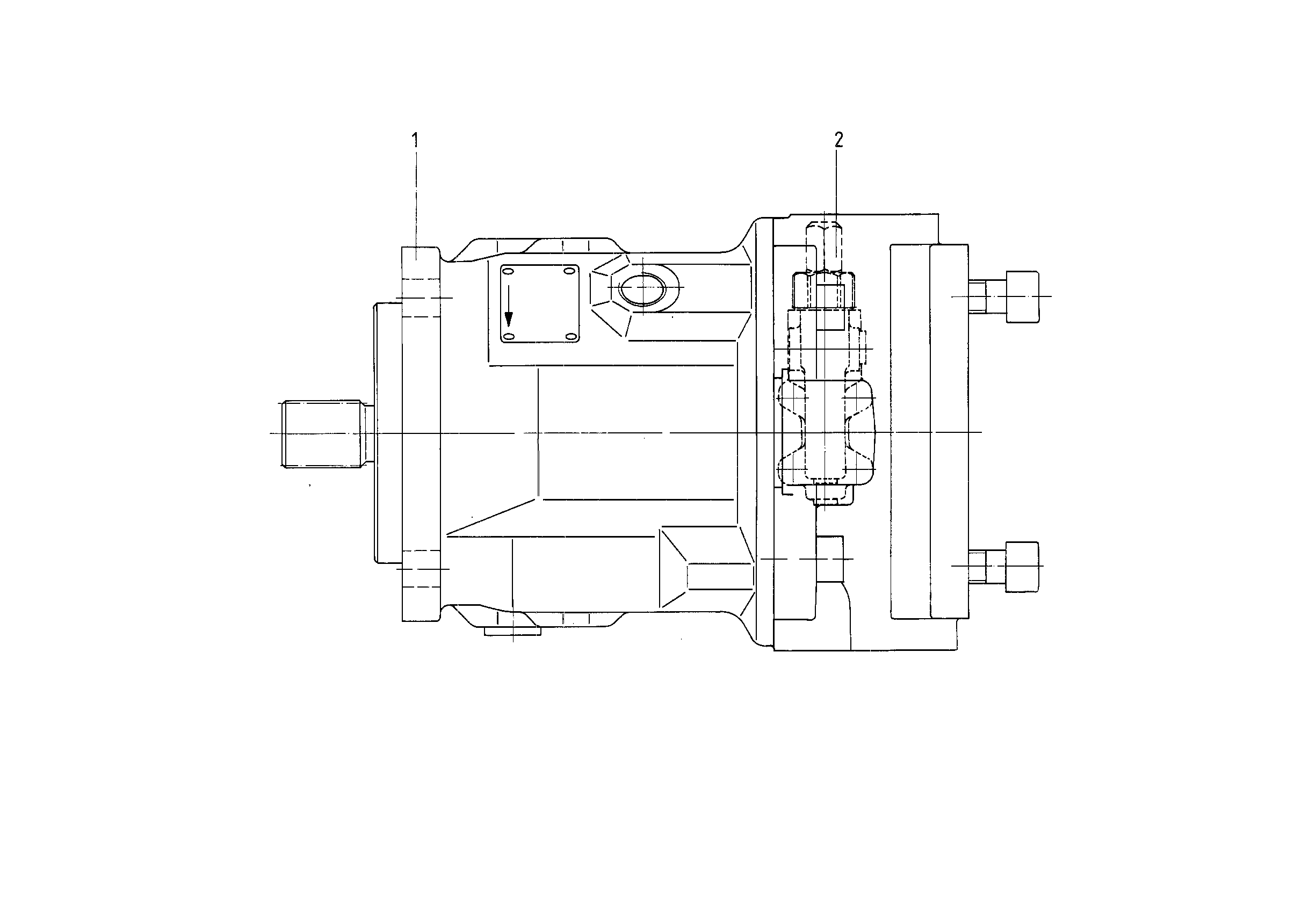

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902501180 | BASE UNIT Assembly parts list →L | 1 | |
| 2 | R902450439 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | with flow controller X-T open hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread | 92 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
