Unit · BASE UNIT
GEAA10VSO 71 OV /31L-VSC92K01R902501180
Base unit Bosch Rexroth series A10VSO, type code GEAA10VSO71OV/31L-VSC92K01, material number R902501180. Nominal size: NG 71. Version: HFA, HFB, HFC hydraulic fluid (E). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C). Working port: SAE flange ports according to ISO 6162, UNC fastening thread (92). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01).
- Number
- R902501180
- Type code
- GEAA10VSO 71 OV /31L-VSC92K01
- Group
- A10VSO 71
- Edition
- 06/2020

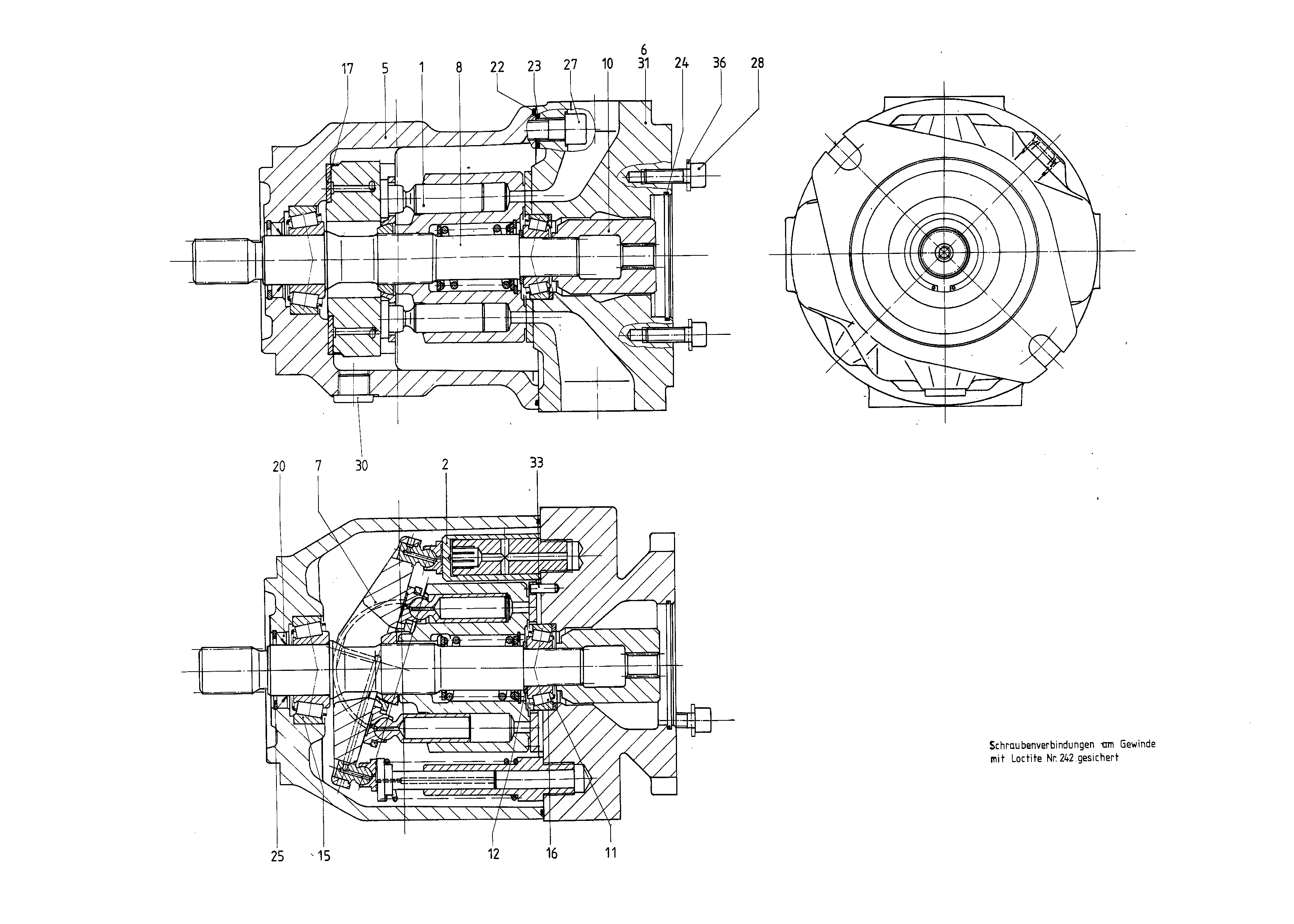

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910911929 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910910873 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910915775 | PUMP HOUSING | 1 | ||
| R902501195 | CONNECTION PLATE | 1 | ||
| R910961020 | SWASH PLATE | 1 | ||
| 8 | R902412024 | DRIVE SHAFT | 1 | |
| R910943545 | SPLINED COUPLING | 1 | ||
| R902439613 | ADJUSTMENT SHIM | 1 | ||
| R910729949 | CYL. ROLLER BEARING | 1 | ||
| 16 | R910729922 | CYL. ROLLER BEARING | 1 | |
| R910902777 | BEARING SHELL | 2 | ||
| R910916105 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910764728 | O-RINGD | 1 | ||
| R913052117 | R-RINGD | 4 | ||
| R910357049 | O-RINGD | 1 | ||
| 25 | R910941918 | RETAINING RING | 1 | |
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | HFA, HFB, HFC hydraulic fluid | E |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | SAE flange ports according to ISO 6162, UNC fastening thread | 92 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
