Unit · AXIAL-PISTON PUMP
AL A10VSO140 DR /31R-VPB12N00R902501288
Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO140DR/31R-VPB12N00, material number R902501288. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00).
- Number
- R902501288
- Type code
- AL A10VSO140 DR /31R-VPB12N00
- Group
- A10VSO 140
- Edition
- 06/2020

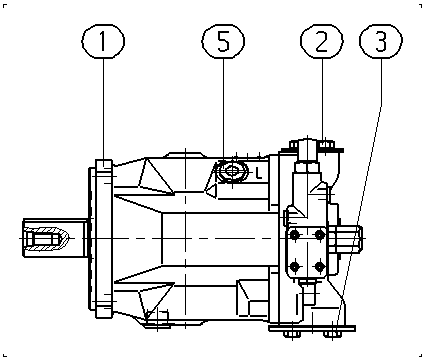

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910946057 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R902602012 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 140 | 140 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
Other versions 23
- R902521405 A A10VSO140 DR /31R-VPB12N00
- R902548113 A A10VSO140 DR /31R-VPB12N00
- R902548114 A A10VSO140 DR /31R-VPB12N00
- R902560991 A A10VSO140 DR /31R-VPB12N00
- R902561418 A A10VSO140 DR /31R-VPB12N00
- R902566066 A A10VSO140 DR /31R-VPB12N00
- R902567081 A A10VSO140 DR /31R-VPB12N00
- R902570676 A A10VSO140 DR /31R-VPB12N00
- R902572347 A A10VSO140 DR /31R-VPB12N00
- R902572646 A A10VSO140 DR /31R-VPB12N00
- R902572798 A A10VSO140 DR /31R-VPB12N00
- R902573038 A A10VSO140 DR /31R-VPB12N00
- R902573069 A A10VSO140 DR /31R-VPB12N00
- R910946057 A A10VSO140 DR /31R-VPB12N00
- R902547136 A A10VSO140 DR /31R-VPB12N00 -S3556
- R902560595 A A10VSO140 DR /31R-VPB12N00 -S3556
- R902425951 A A10VSO140 DR /31R-VPB12N00 -SO294
- R902569166 A A10VSO140 DR /31R-VPB12N00 -SO904
- R902497661 A A10VSO140 DR /31R-VPB12N00 -SO910
- R902534454 AF A10VSO140 DR /31R-VPB12N00 -S4140
- R902540404 AF A10VSO140 DR /31R-VPB12N00 -S4445
- R902520745 AL A10VSO140 DR /31R-VPB12N00
- R902553192 AL A10VSO140 DR /31R-VPB12N00
