Unit · AXIAL-PISTON PUMP
A A10V O100 DFR /31R-PKC61N00 -S2448R902501400
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO100DFR/31R-PKC61N00-S2448, material number R902501400. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open Hydraulic (DFR). Direction of rotation: viewed on drive shaft Clockwise (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive (61). Through drive: without through drive (N00). Special version no. 2448.
- Number
- R902501400
- Type code
- A A10V O100 DFR /31R-PKC61N00 -S2448
- Group
- A10VO 100
- Edition
- 06/2020

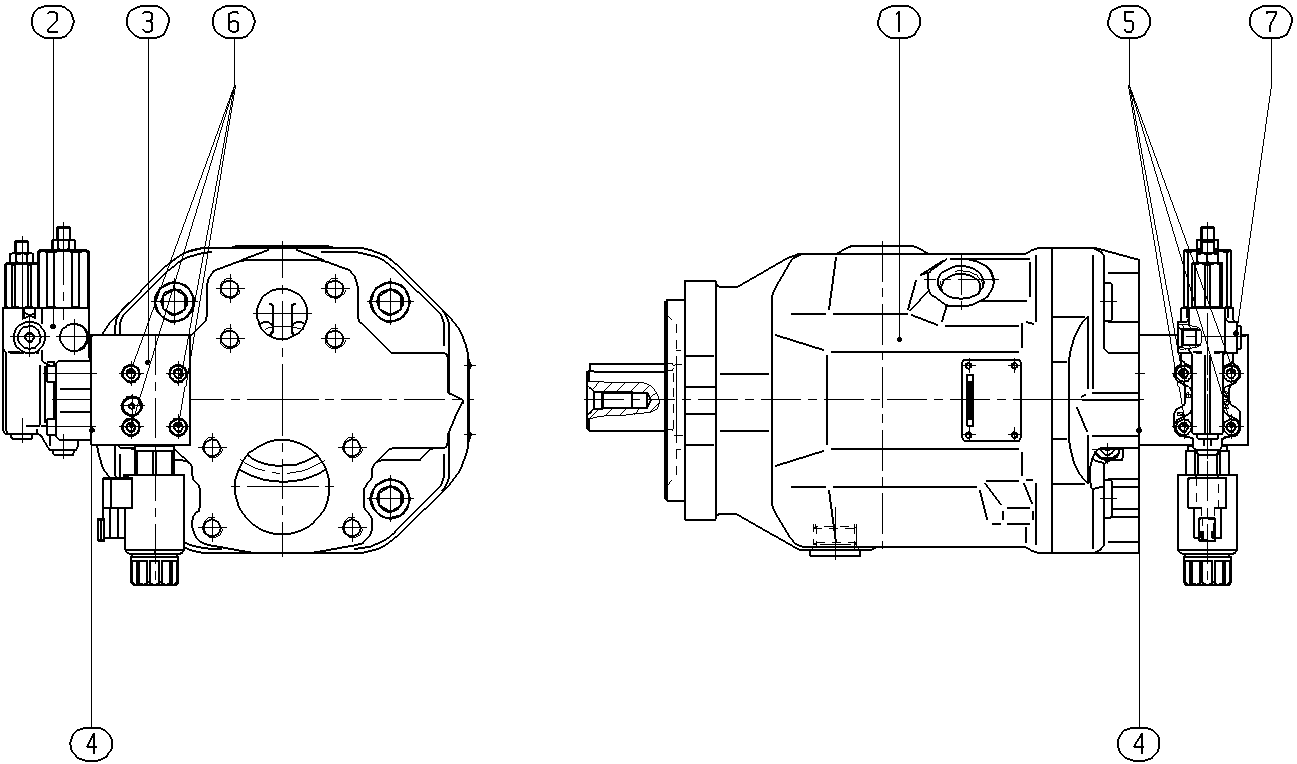

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902501413 | BASE UNIT Assembly parts list →L | 1 | ||
| R902453432 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R978030505 | HY-MANIFOLD BLOCK | 1 | ||
| R902434482 | SEAL | 2 | ||
| R910900443 | SOCKET HEAD CAP SCREW | 4 | ||
| R902650500 | SOCKET HEAD CAP SCREW | 4 | ||
| R910764647 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | With flow controller X-T open Hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections Fastening thread according to ISO 6162, UNC; rear working ports UNC Not for through drive | 61 |
| Through drive | Without through drive | N00 |
