Unit · AXIAL-PISTON PUMP
AL A10VSO 18 DFR1/31L-PSC12K52R902501549
Axial piston pump Bosch Rexroth series A10VSO, type code ALA10VSO18DFR1/31L-PSC12K52, material number R902501549. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 82-2 (A) 3/4 in 11T 16/32DP (K52).
- Number
- R902501549
- Type code
- AL A10VSO 18 DFR1/31L-PSC12K52
- Group
- A10VSO 18
- Edition
- 06/2020

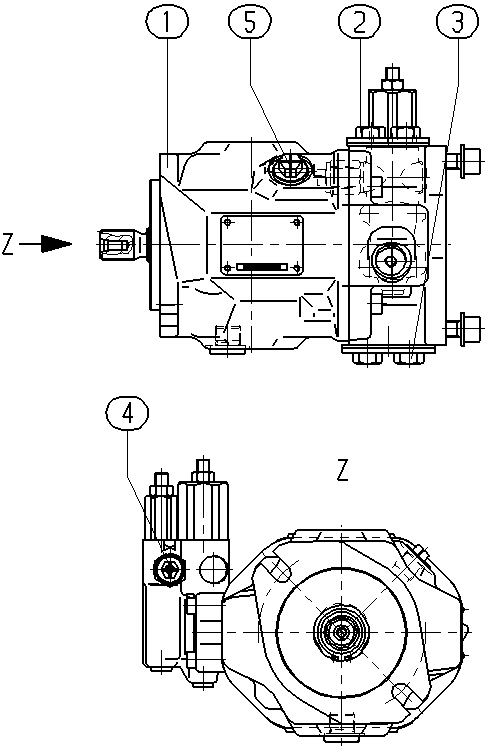

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902501553 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400574 | FLANGE COVER | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902602008 | SEAL SCREW | 1 | ||
| R902602009 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 18 | 18 |
| Control device | with flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid | P |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 82-2 (A) 3/4 in 11T 16/32DP | K52 |
