Unit · AXIAL-PISTON PUMP
A A10V O 28ED 71/31R-VSC12K01PR902501556
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO28ED71/31R-VSC12K01P, material number R902501556. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with pressure cut-off Electric U = 12 V Negative control (ED71). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive (12). Through drive: 82-2 (A) 5/8 in 9T 16/32DP (K01). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P).
- Number
- R902501556
- Type code
- A A10V O 28ED 71/31R-VSC12K01P
- Group
- A10VO 28
- Edition
- 06/2020

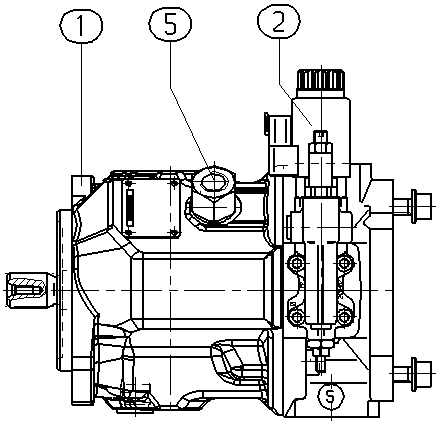

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902420672 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533345 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910929857 | ADAPTER Assembly parts list →L | 1 | ||
| 70 | R902421944 | SHIPPING PROTECTION | 1 | |
| 71 | R902421946 | SHIPPING PROTECTION | 1 | |
| 72 | R902602010 | SEAL SCREW | 1 | |
| 74 | R902602975 | FLANGE COVER | 1 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | With pressure cut-off Electric U = 12 V Negative control | ED71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom For through drive | 12 |
| Through drive | 82-2 (A) 5/8 in 9T 16/32DP | K01 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
