Unit · AXIAL-PISTON PUMP
AP A10V O100 DFR1/31R-VSD73K07 -S2113R902501595
Axial piston pump Bosch Rexroth series A10VO, type code APA10VO100DFR1/31R-VSD73K07-S2113, material number R902501595. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Through drive: 127-2 (C) 1 1/4 in 14T 12/24DP (K07). Special version no. 2113.
- Number
- R902501595
- Type code
- AP A10V O100 DFR1/31R-VSD73K07 -S2113
- Group
- A10VO 100
- Edition
- 06/2020

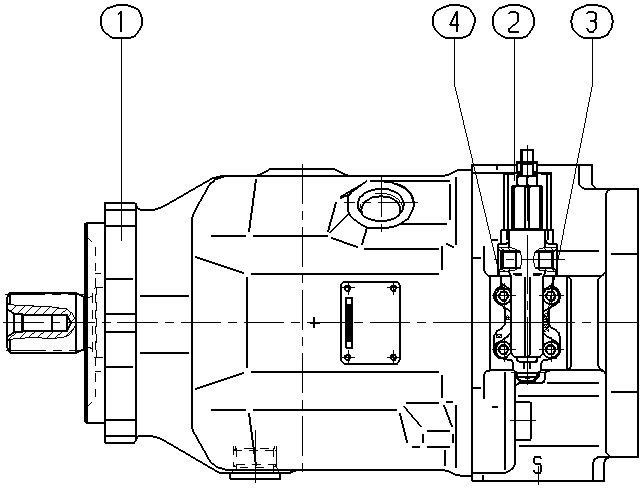

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902450661 | BASE UNIT Assembly parts list →L | 1 | ||
| R902461266 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902434482 | SEAL | 1 | ||
| R910900443 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2/4-hole | D |
| Through drive | 127-2 (C) 1 1/4 in 14T 12/24DP | K07 |
