Unit · AXIAL-PISTON PUMP
A A10VSO 71 DFLR/31R-VSA12K68 -SO582R902501652
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO71DFLR/31R-VSA12K68-SO582, material number R902501652. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 582.
- Number
- R902501652
- Type code
- A A10VSO 71 DFLR/31R-VSA12K68 -SO582
- Group
- A10VSO 71
- Edition
- 06/2020

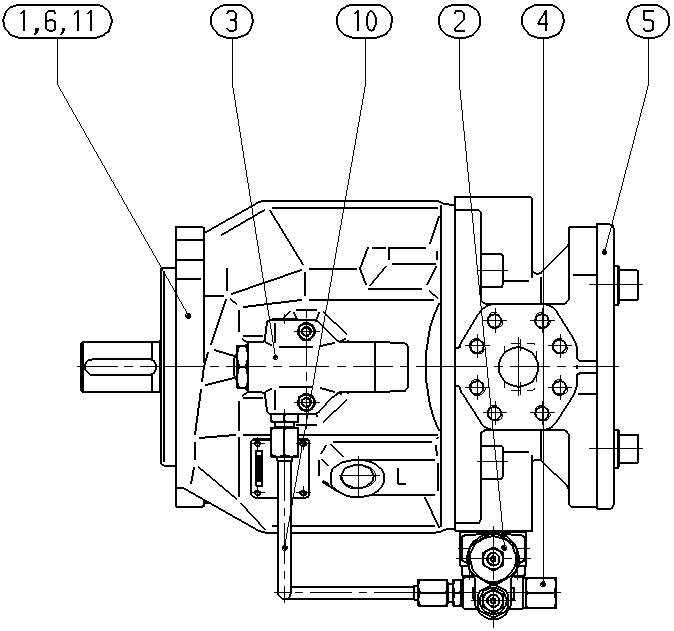

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902466455 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910932943 | ADAPTER Assembly parts list →L | 1 | ||
| R902469010 | SEALING COVER Assembly parts list →L | 1 | ||
| R910917867 | SIDE MARKER RING | 1 | ||
| R910963791 | PIPING Assembly parts list →L | 1 | ||
| R910909312 | POWER DIAGRAM | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
