Unit · AXIAL-PISTON PUMP
A A10VSO 45 DFLR/31R-VPA12K68 -SO 52R902501660
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45DFLR/31R-VPA12K68-SO52, material number R902501660. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 52.
- Number
- R902501660
- Type code
- A A10VSO 45 DFLR/31R-VPA12K68 -SO 52
- Group
- A10VSO 45
- Edition
- 06/2020

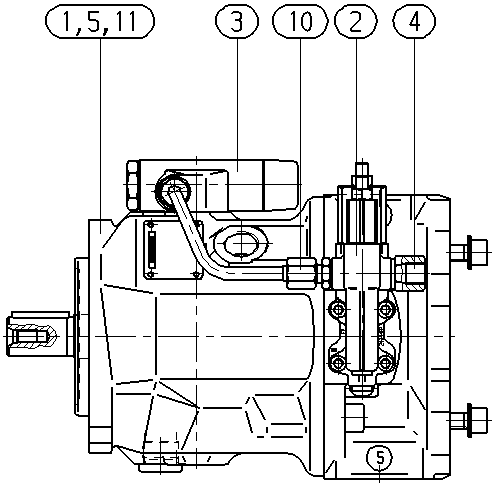

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902451599 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910932943 | ADAPTER Assembly parts list →L | 1 | ||
| R910969508 | SIDE MARKER RING | 1 | ||
| R910960164 | PIPING Assembly parts list →L | 1 | ||
| R910910898 | POWER DIAGRAM | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
Other versions 10
- R902467531 A A10VSO 45 DFLR /31R-VPA12K68 -SO 52
- R902451479 A A10VSO 45 DFLR/31R-VPA12K68
- R902459033 A A10VSO 45 DFLR/31R-VPA12K68
- R902495775 A A10VSO 45 DFLR/31R-VPA12K68
- R902520684 A A10VSO 45 DFLR/31R-VPA12K68
- R902537859 A A10VSO 45 DFLR/31R-VPA12K68
- R902541342 A A10VSO 45 DFLR/31R-VPA12K68
- R902480380 A A10VSO 45 DFLR/31R-VPA12K68 -SO 52
- R902446675 A A10VSO 45 DFLR/31R-VPA12K68 -SO385
- R902546873 A A10VSO 45 DFLR/31R-VPA12K68 -SO385
