Unit · AXIAL-PISTON PUMP
AL A10V O 71 DFR1/31R-VSC92K68 -SO833R902501864
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO71DFR1/31R-VSC92K68-SO833, material number R902501864. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom (92). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 833.
- Number
- R902501864
- Type code
- AL A10V O 71 DFR1/31R-VSC92K68 -SO833
- Group
- A10VO 71
- Edition
- 06/2020

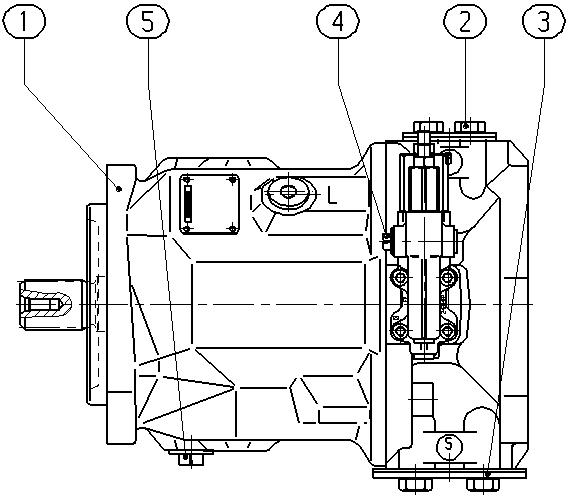

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902501867 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400579 | FLANGE COVER | 1 | ||
| R902400591 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603190 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Control device | With flow controller X-T plugged, with flushing function | DFR1 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports UNC Fastening thread UNC; lateral top bottom | 92 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
Other versions 16
- R902474317 A A10V O 71 DFR1/31R-VSC92K68
- R902544746 A A10V O 71 DFR1/31R-VSC92K68
- R902568150 A A10V O 71 DFR1/31R-VSC92K68
- R910945645 A A10V O 71 DFR1/31R-VSC92K68
- R910984000 A A10V O 71 DFR1/31R-VSC92K68
- R902565991 A A10V O 71 DFR1/31R-VSC92K68 -SO 52
- R902536815 A A10V O 71 DFR1/31R-VSC92K68 -SO200
- R910946977 A A10V O 71 DFR1/31R-VSC92K68 -SO225
- R902501867 A A10V O 71 DFR1/31R-VSC92K68 -SO833
- R902456901 AL A10V O 71 DFR1/31R-VSC92K68
- R902474316 AL A10V O 71 DFR1/31R-VSC92K68
- R910983853 AL A10V O 71 DFR1/31R-VSC92K68
- R992001405 AL A10V O 71 DFR1/31R-VSC92K68
- R902574004 AL A10V O 71 DFR1/31R-VSC92K68 -S1063
- R902560920 AL A10V O 71 DFR1/31R-VSC92K68 -SO200
- R902503099 AP A10V O 71 DFR1/31R-VSC92K68
