Unit · BASE UNIT
G A10V O 71 OV /31R-VSC42N00 -S2754R902502115
Base unit Bosch Rexroth series A10VO, type code GA10VO71OV/31R-VSC42N00-S2754, material number R902502115. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom (42). Through drive: without through drive (N00). Special version no. 2754.
- Number
- R902502115
- Type code
- G A10V O 71 OV /31R-VSC42N00 -S2754
- Group
- A10VO 71
- Edition
- 06/2020

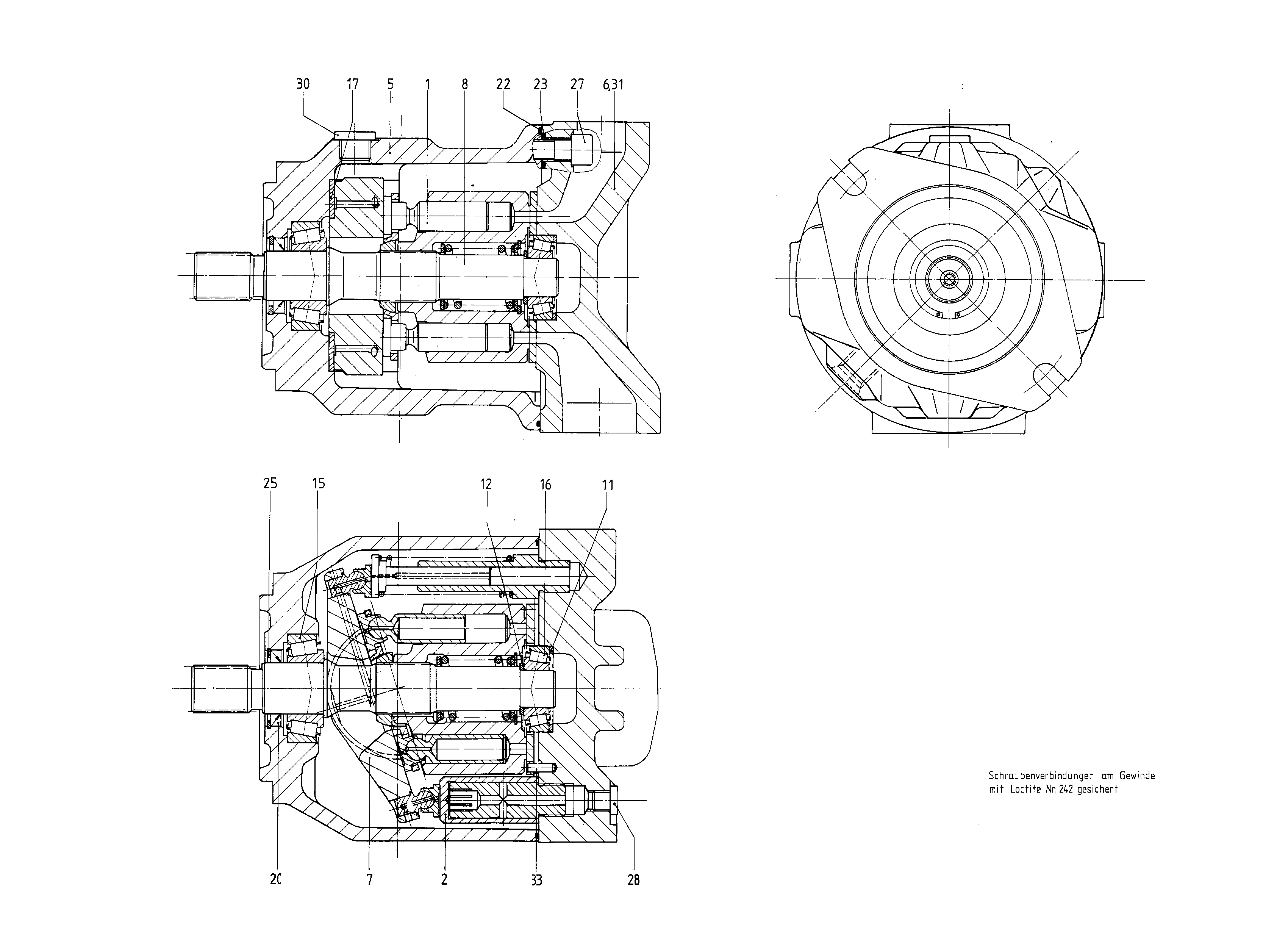

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910956007 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910910873 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| 5 | R902535982 | PUMP HOUSING | 1 | |
| 6 | R902536002 | CONNECTION PLATE | 1 | |
| R910961017 | SWASH PLATE Assembly parts list →L | 1 | ||
| 8 | R910998844 | DRIVE SHAFT | 1 | |
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| 20 | R910764701 | SHAFT SEALING RINGD | 1 | |
| R910764728 | O-RINGD | 1 | ||
| R913052117 | R-RINGD | 4 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153930 | SCREW PLUGD | 2 | ||
| R902601712 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R902533908 | STRAIGHT PIN | 1 | |
| 43 | R900002645 | SLOTTED SPRING PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange connections according to ISO 6162, working ports metric Fastening thread metric; lateral top bottom | 42 |
| Through drive | Without through drive | N00 |
