Unit · AXIAL-PISTON PUMP
A A10V O 85 DRF /53R-VUD62H00 -SO763R902502379
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO85DRF/53R-VUD62H00-SO763, material number R902502379. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DRF). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 4-hole (D). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62). Special version no. 763.
- Number
- R902502379
- Type code
- A A10V O 85 DRF /53R-VUD62H00 -SO763
- Group
- A10VO 85
- Edition
- 06/2020

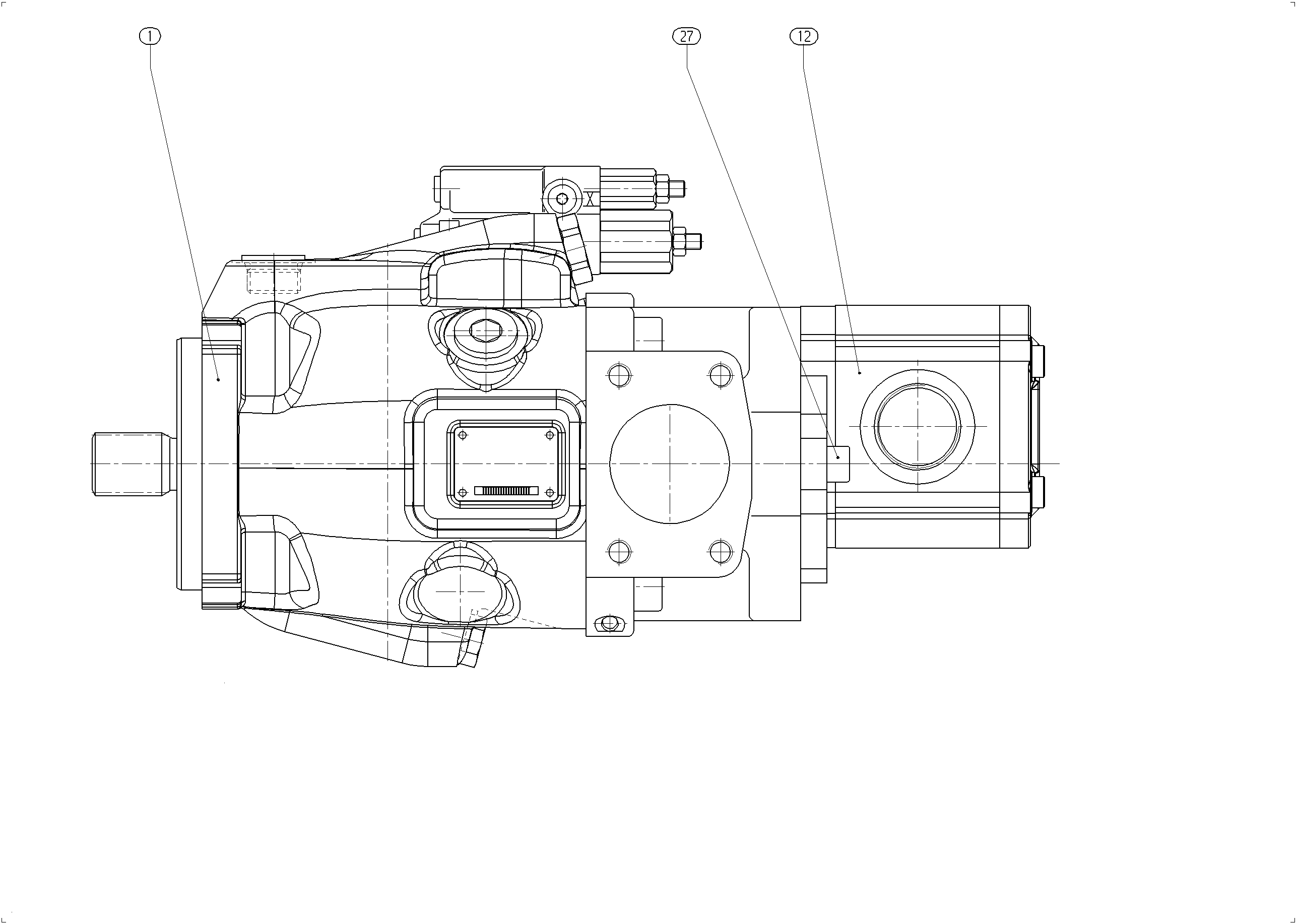

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902502381 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 9510390241 | HYDRAULIC GEAR PUMP | 1 | ||
| R910109762 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 85 | 85 |
| Control device | with flow controller X-T open hydraulic | DRF |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 4-hole | D |
| Working port | SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite | 62 |
