Unit · AXIAL-PISTON PUMP

AL A10V O 18ED 72/53L-VSC12N00PR902502407

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO18ED72/53L-VSC12N00P, material number R902502407. Nominal size: NG 18. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: electric U = 24 V (ED72). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P).

Number
R902502407
Type code
AL A10V O 18ED 72/53L-VSC12N00P
Group
A10VO 18
Edition
07/2020

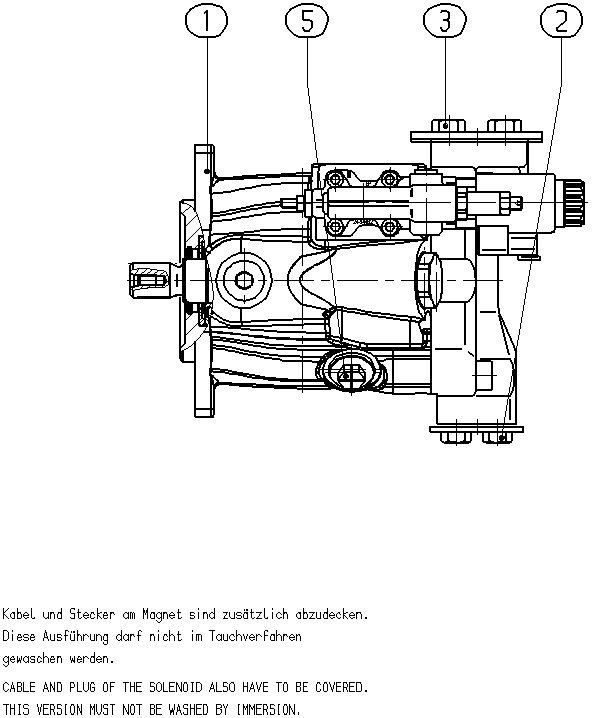

AL A10V O 18ED 72/53L-VSC12N00P — Drawing
Pos.NumberNameQtyAdd to inquiry
R902502409AXIAL-PISTON PUMP Assembly parts list →L1
R902480289FLANGE COVER1
R902480292FLANGE COVER1
R902602016SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi)A10V
Operating modePump, open circuitO
Size (NG)1818
Control deviceelectric U = 24 VED72
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Working portSAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite12
Through driveWithout through driveN00
Connector for solenoidsDEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls)P

Other versions 3
