Unit · AXIAL-PISTON PUMP
A A10V O 63LA8DG/53R-VSC62N00R902502481
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO63LA8DG/53R-VSC62N00, material number R902502481. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: power controller with pressure cut-off 106 to 140 bar (1535 to 2030 psi) (LA8D). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite (62). Through drive: without through drive (N00).
- Number
- R902502481
- Type code
- A A10V O 63LA8DG/53R-VSC62N00
- Group
- A10VO 63
- Edition
- 06/2020

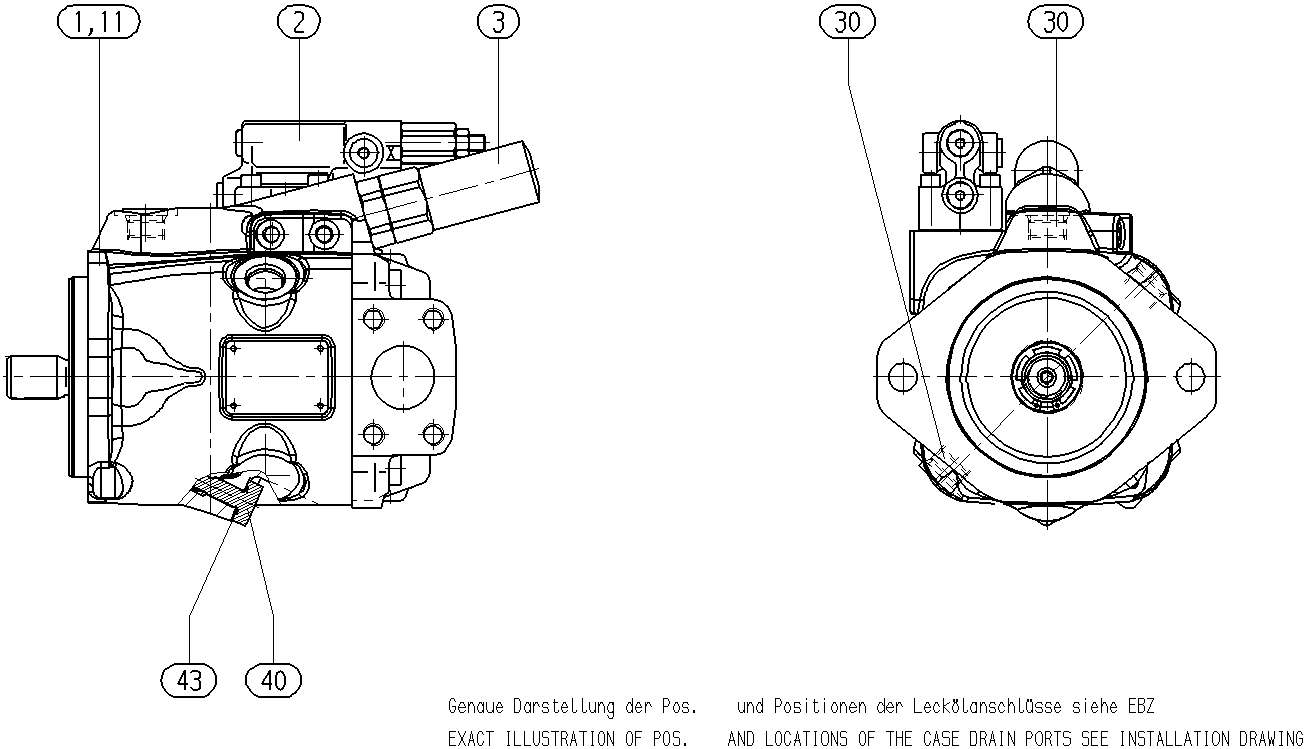

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902443277 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451761 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902469597 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910967343 | SCREW PLUG | 2 | ||
| R902427032 | STOP SCREW | 1 | ||
| R910804886 | O-RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Control device | Power controller with pressure cut-off 106 to 140 bar (1535 to 2030 psi) | LA8D |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 UNC fastening thread UNC for through drive laterally opposite | 62 |
| Through drive | Without through drive | N00 |
