Unit · AXIAL-PISTON PUMP
A A10VNO 63 ED71/52L-VRC11N00T -S3457R902502502
Axial piston pump Bosch Rexroth series A10VNO, type code AA10VNO63ED71/52L-VRC11N00T-S3457, material number R902502502. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: electric U = 12 V negative control (ED71). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: similar to shaft "S" however for torque (R). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: according to ISO 6162 rear not for through drive (11). Through drive: without through drive (N00).
- Number
- R902502502
- Type code
- A A10VNO 63 ED71/52L-VRC11N00T -S3457
- Group
- A10VNO 63
- Edition
- 06/2020

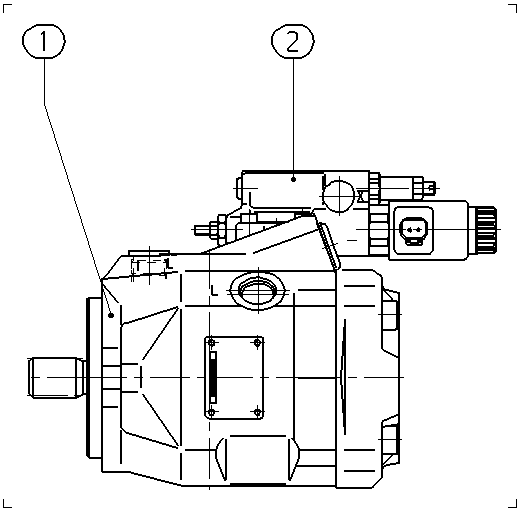

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902502506 | BASE UNIT Assembly parts list →L | 1 | ||
| R902533352 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 20 | R902493561 | LOCKNUT Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) | A10VN |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Control device | electric U = 12 V negative control | ED71 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | similar to shaft "S" however for torque | R |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | according to ISO 6162 rear not for through drive | 11 |
| Through drive | Without through drive | N00 |
