Unit · AXIAL-PISTON PUMP

A AA10VSO140DFLR/31R-VKD62N00 -SO160R902502669

Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO140DFLR/31R-VKD62N00-SO160, material number R902502669. Nominal size: NG 140. Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Working port: SAE flange ports according to ISO 6162, UNC fastening thread laterally opposite (62). Through drive: without through drive (N00). Special version no. 160.

Number
R902502669
Type code
A AA10VSO140DFLR/31R-VKD62N00 -SO160
Group
A10VSO 140
Edition
06/2020

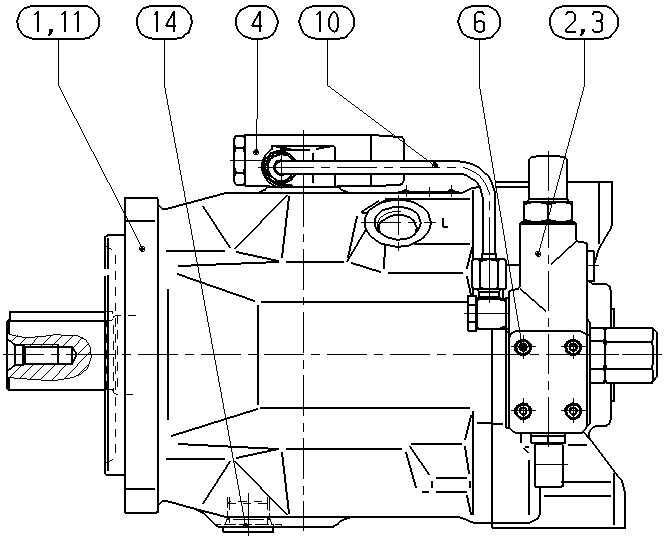

A AA10VSO140DFLR/31R-VKD62N00 -SO160 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902502568BASE UNIT Assembly parts list →L1
R910924992CONTROL VALVE Assembly parts list →L1
R910943450CONTROL VALVE Assembly parts list →L1
R902533217CONTROL VALVE Assembly parts list →L1
R910799998SOCKET HEAD CAP SCREW4
R910964730PIPING Assembly parts list →L1
R902456558POWER DIAGRAM1
R910764647SCREW PLUG1

Parameters from the type code

ItemMeaningCode
Operating modePump, open circuitO
Size (NG)140140
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftParallel keyed shaft permissible through-drive torque ISO 3019-1K
Working portSAE flange ports according to ISO 6162, UNC fastening thread laterally opposite62
Through driveWithout through driveN00

Other versions 7
