Unit · AXIAL-PISTON PUMP
G AA10VSO 45 OV /31R-VKC62K57 LR -SO200R902502795
Axial piston pump Bosch Rexroth series A10VSO, type code GAA10VSO45OV/31R-VKC62K57LR-SO200, material number R902502795. Nominal size: NG 45. Version: standard version (without symbol), swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Directions of rotation: viewed on drive shaft clockwise (R). Through drives: ø 63, metric 4-hole Shaft key ø25 (K57). Special version no. 200.
- Number
- R902502795
- Type code
- G AA10VSO 45 OV /31R-VKC62K57 LR -SO200
- Group
- A10VSO 45
- Edition
- 06/2020

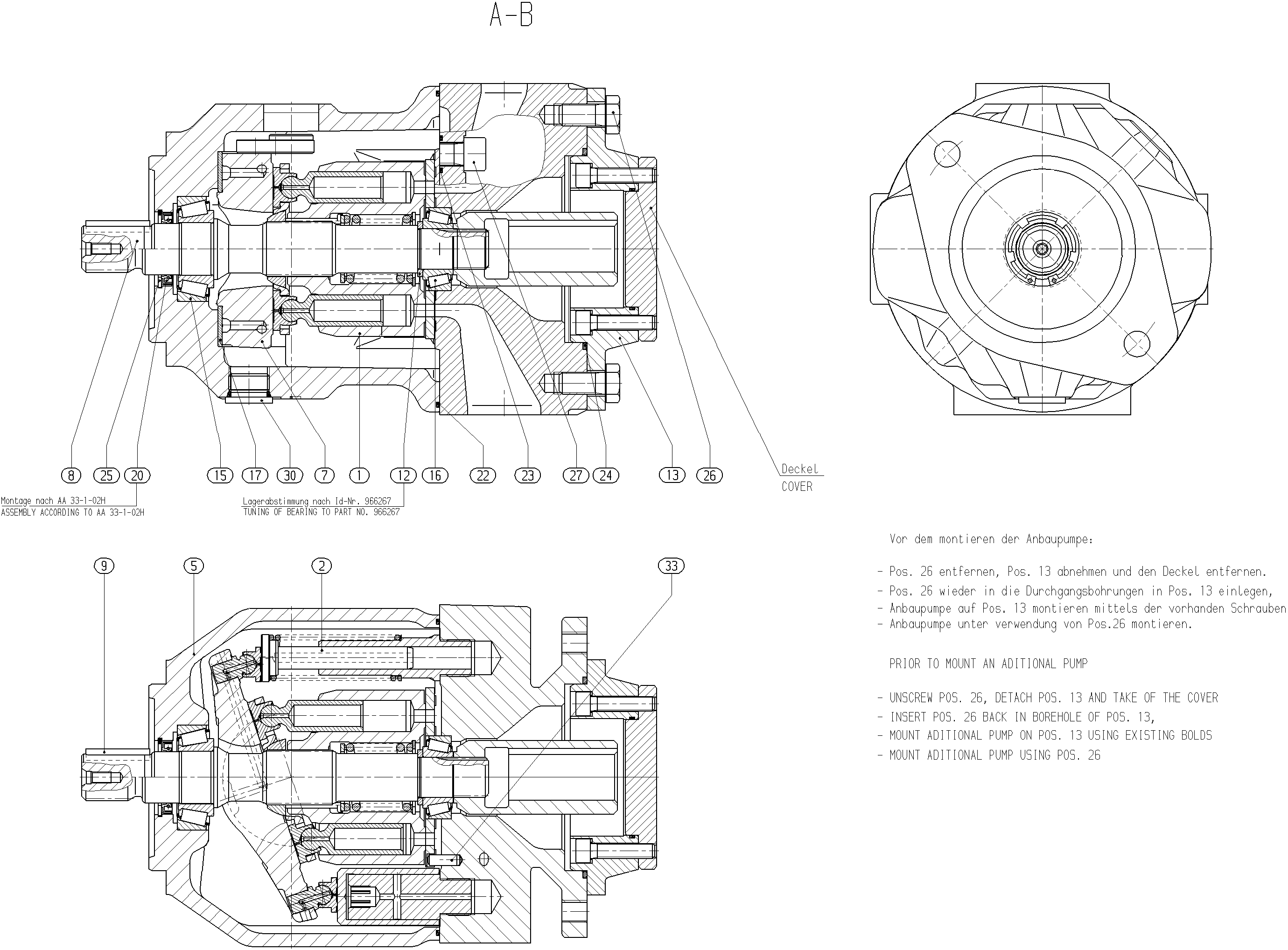

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902559903 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910910852 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902546051 | PUMP HOUSING | 1 | ||
| 6 | R902465593 | CONNECTION PLATE | 1 | |
| R910961029 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902417385 | DRIVE SHAFT | 1 | ||
| R910749265 | PARALLEL KEY | 1 | ||
| 10 | R910901006 | HUB | 1 | |
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R902502806 | INTERMEDIATE FLANGE Assembly parts list →L | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R910793698 | O-RINGD | 1 | ||
| R913052111 | R-RINGD | 4 | ||
| R910905441 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910120006 | HEXAGON SCREW | 2 | ||
| R910220264 | SOCKET HEAD CAP SCREW | 4 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Version | Standard version (without symbol), swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 45 | 45 |
| Series | Series 3, index 1 | 31 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Through drives | ø 63, metric 4-hole Shaft key ø25 | K57 |
