Unit · AXIAL-PISTON PUMP
A A10V O 60 DFR1/52R-VSR73K04 -S3012R902502825
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO60DFR1/52R-VSR73K04-S3012, material number R902502825. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Through drive: 101-2 (B) 1 in 15T 16/32DP (K04). Special version no. 3012.
- Number
- R902502825
- Type code
- A A10V O 60 DFR1/52R-VSR73K04 -S3012
- Group
- A10VO 60
- Edition
- 06/2020

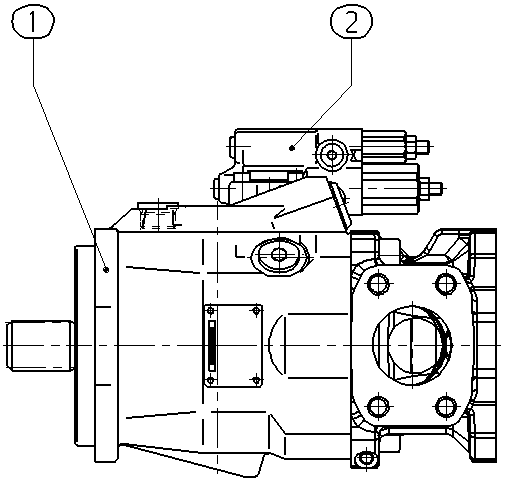

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902502827 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450440 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Through drive | 101-2 (B) 1 in 15T 16/32DP | K04 |
