Unit · AXIAL-PISTON PUMP
A A10V O100 DRS /32R-VKC72U68 ER902502932
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO100DRS/32R-VKC72U68E, material number R902502932. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: with flow controller X-T plugged with flushing function (DRS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on SAE B; 2-hole ISO 3019-1 (SAE) (C). Through drive: only for port plate 22/72 and 32/82, 101-2 (B) 7/8 in 13T 16/32DP (U68).
- Number
- R902502932
- Type code
- A A10V O100 DRS /32R-VKC72U68 E
- Group
- A10VO 100
- Edition
- 06/2020

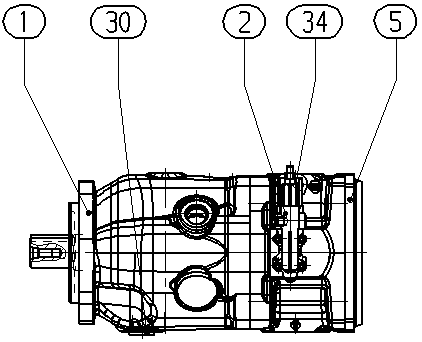

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902502935 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450439 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902447043 | ATTACHMENT KIT | 1 | ||
| R910967351 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 100 | 100 |
| Control devices | with flow controller X-T plugged with flushing function | DRS |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on SAE B; 2-hole ISO 3019-1 (SAE) | C |
| Through drive | Only for port plate 22/72 and 32/82, 101-2 (B) 7/8 in 13T 16/32DP | U68 |
