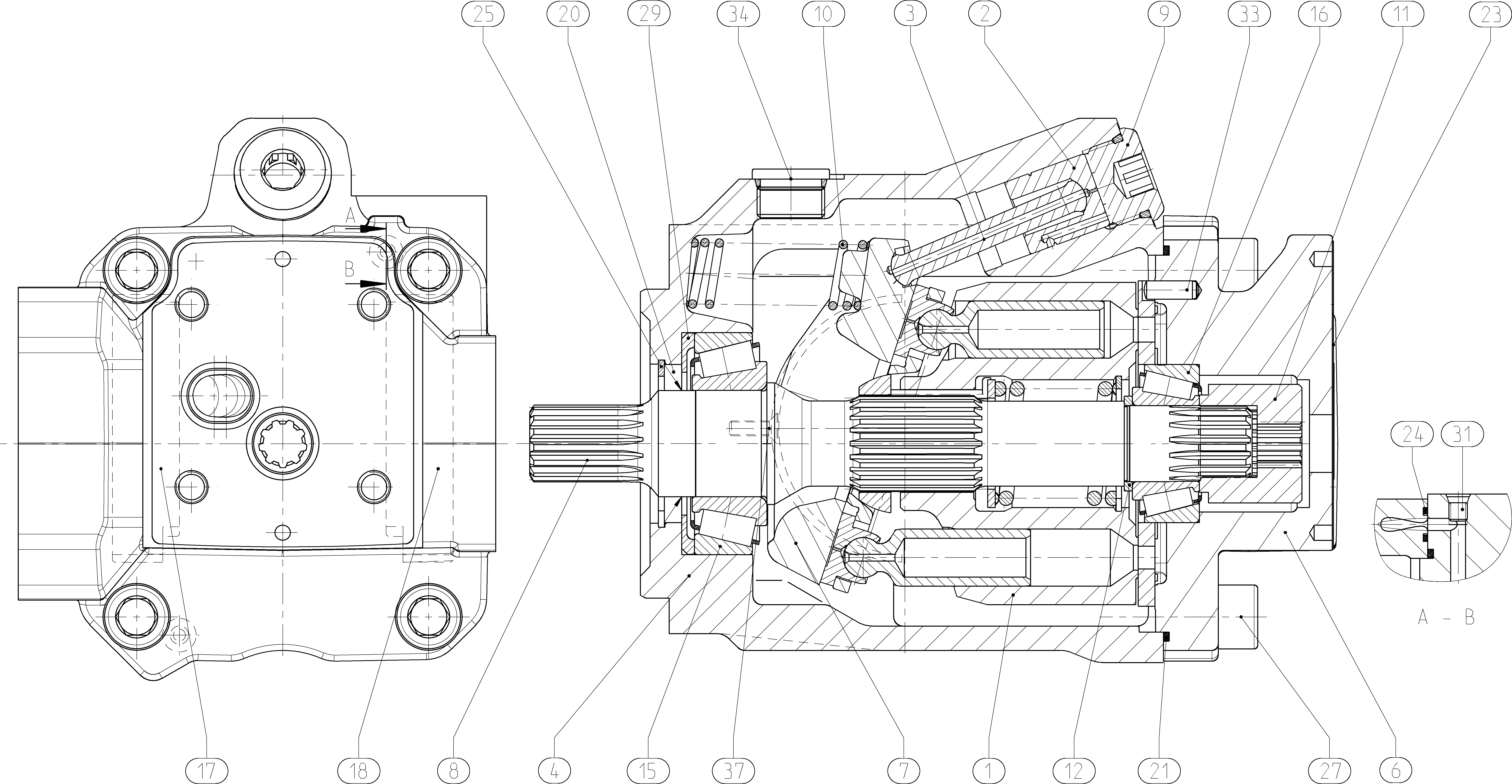

Unit · BASE UNIT
G A10V O 60 OV /52R-VWC73KXX -S3201R902503321
Base unit Bosch Rexroth series A10VO, type code GA10VO60OV/52R-VWC73KXX-S3201, material number R902503321. Nominal size: NG 60. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: same as "U", higher torque; limited suitability for through drive; for mounting option (W). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Special version no. 3201.
- Number
- R902503321
- Type code
- G A10V O 60 OV /52R-VWC73KXX -S3201
- Group
- A10VO 60
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902454130 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902419467 | PUMP HOUSING | 1 | ||
| R902503187 | CONNECTION PLATE | 1 | ||
| R902437115 | SWASH PLATE | 1 | ||
| R902503342 | DRIVE SHAFT | 1 | ||
| R902447574 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910973548 | COMPRESSION SPRING | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R902413637 | BEARING SHELL | 1 | ||
| R902413636 | BEARING SHELL | 1 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R913050498 | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 2 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 4 | ||
| R910989235 | STOP RING | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910967343 | SCREW PLUG | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 60 | 60 |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Same as "U", higher torque; limited suitability for through drive; for mounting option | W |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
