Unit · BASE UNIT
G AA10VSO 28 OV /31R-VKC61N00R902506088
Base unit Bosch Rexroth series A10VSO, type code GAA10VSO28OV/31R-VKC61N00, material number R902506088. Nominal size: NG 28. Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Through drive: without through drive (N00).
- Number
- R902506088
- Type code
- G AA10VSO 28 OV /31R-VKC61N00
- Group
- A10VSO 28
- Edition
- 06/2020

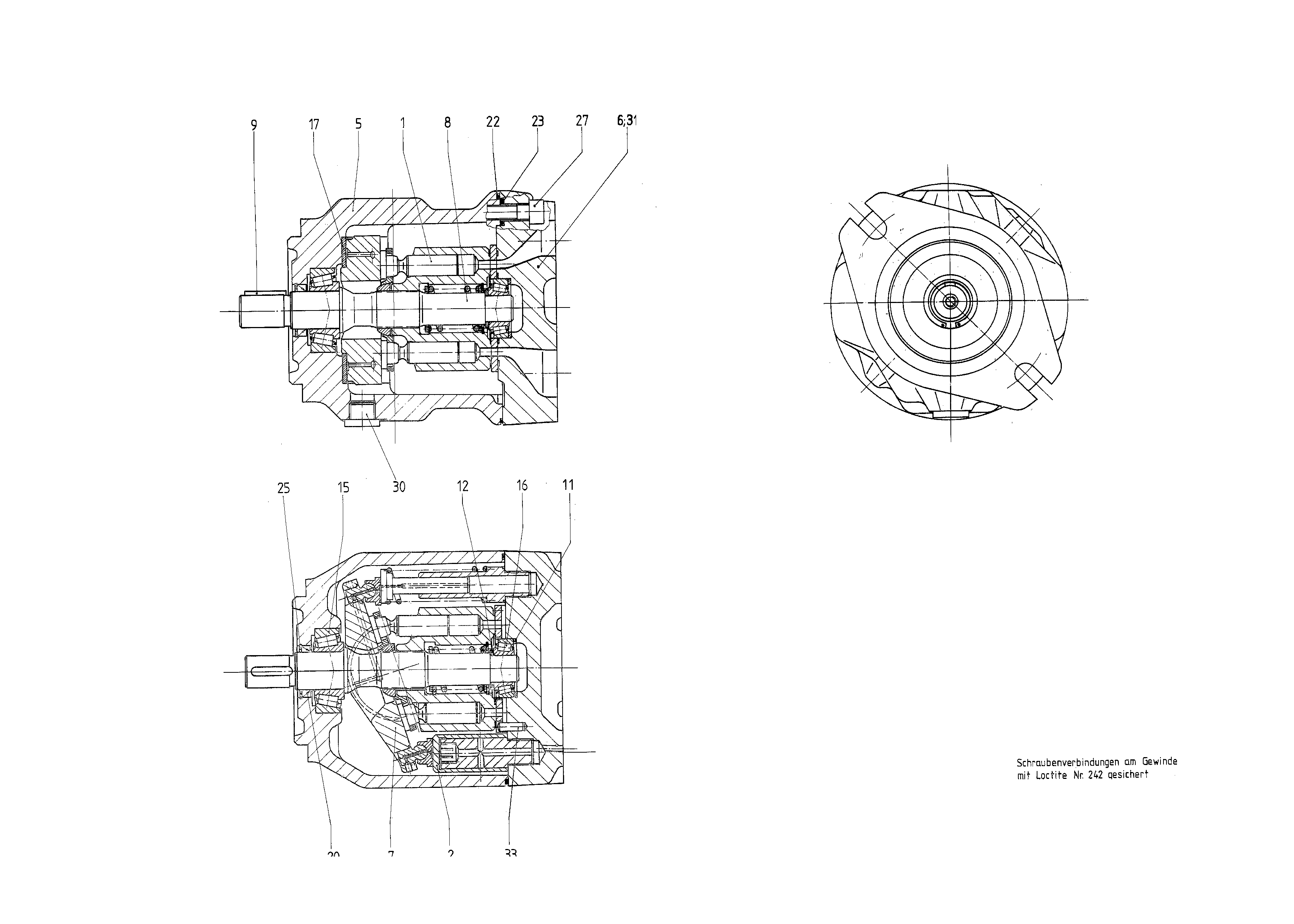

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902439597 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R910911162 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| R902550217 | PUMP HOUSING | 1 | ||
| 6 | R910947938 | CONNECTION PLATE | 1 | |
| 7 | R910960813 | SWASH PLATE | 1 | |
| R902417360 | DRIVE SHAFT | 1 | ||
| R910751138 | PARALLEL KEY | 1 | ||
| R910744158 | WASHER | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| 20 | R910794325 | SHAFT SEALING RINGD | 1 | |
| R910976090 | O-RINGD | 1 | ||
| R913052104 | R-RINGD | 4 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R910901969 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 | |
| 33 | R902533908 | STRAIGHT PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Through drive | Without through drive | N00 |
