Unit · AXIAL-PISTON MOTOR

A A10F E 11 /52W-VCC66N000R902506137

Axial piston motor Bosch Rexroth series A10FM, type code AA10FE11/52W-VCC66N000, material number R902506137. Nominal size: NG 11. Axial piston unit: swashplate design, constant, nominal pressure 280 bar (4100 psi), maximum (A10F). Operating mode: motor, plug-in design, open and closed circuits (E). Direction of rotation: viewed on drive shaft Alternating (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: tapered shaft with shaft key and threaded bolt (C). Mounting flange: based on ISO 3019-1 (SAE); 2 hole (C). Working port: threaded port according A and B laterally, Threaded port, to ISO 11926 same side, UN (66N00). Valves: without valve (0).

Number
R902506137
Type code
A A10F E 11 /52W-VCC66N000
Group
A10FE 11
Edition
06/2020

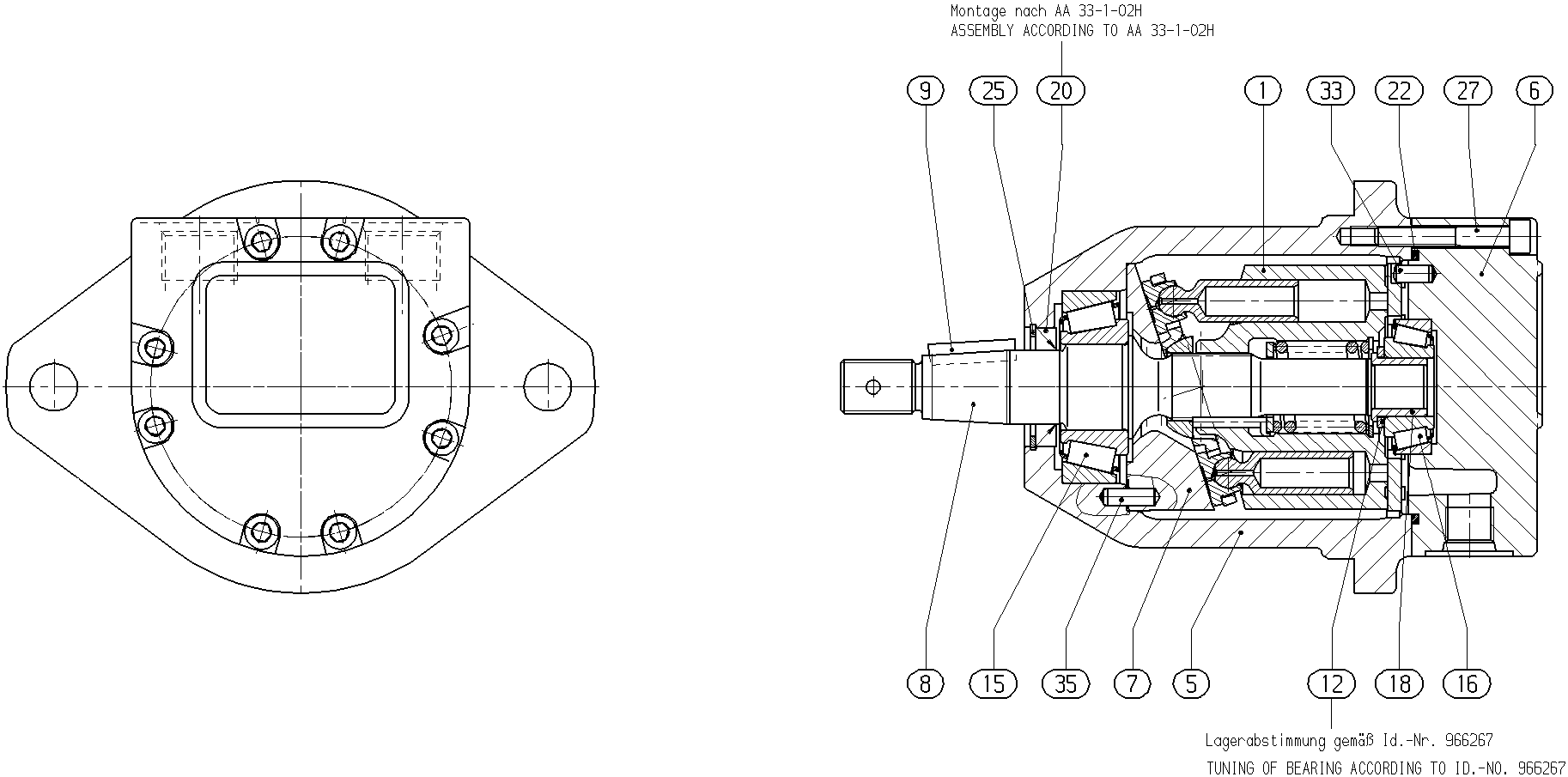

A A10F E 11 /52W-VCC66N000 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902414695ROTARY GROUP Assembly parts list →L1
R902414214MOTOR HOUSING1
R902438704CONNECTION PLATE1
R902437268CAM PLATE1
R902420993DRIVE SHAFT1
R910964231PARALLEL KEY1
R902400789ADJUSTMENT SHIM1
R902438109TAPERED-ROLLER BEARING1
R902438110TAPERED-ROLLER BEARING1
R902414635BUSHING1
R910900853SHAFT SEALING RING1
R910274135O-RING1
R902403815RETAINING RING1
R910126446SOCKET HEAD CAP SCREW8
R910911771STRAIGHT PIN1
R910757519STRAIGHT PIN2

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, constant, nominal pressure 280 bar (4100 psi), maximumA10F
Operating modeMotor, plug-in design, open and closed circuitsE
Size (NG)1111
SeriesSeries 5, index 252
Direction of rotationViewed on drive shaft AlternatingW
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftTapered shaft with shaft key and threaded boltC
Mounting flangeBased on ISO 3019-1 (SAE); 2 holeC
Working portThreaded port according A and B laterally, Threaded port, to ISO 11926 same side, UN66N00
ValvesWithout valve0
