Unit · BASE UNIT
GA10VE28OZ/52W1-VRF66N007-S1871R902506715
Base unit Bosch Rexroth series A10VM, type code GA10VE28OZ/52W1-VRF66N007-S1871, material number R902506715. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, plug-in design, open and closed circuits (E). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft similar to ISO 3019-1 for high torque (R). Mounting flange: special flange; 2 hole (F). Working port: threaded port according to A and B laterally, Threaded port, UN ISO 11926 same side (66N00). Valves: integrated flushing valve (only with working line ports 10N00, 60N00 and 16N00, 66N00) (7). Special version no. 1871.
- Number
- R902506715
- Type code
- GA10VE28OZ/52W1-VRF66N007-S1871
- Group
- A10VE 28
- Edition
- 06/2020

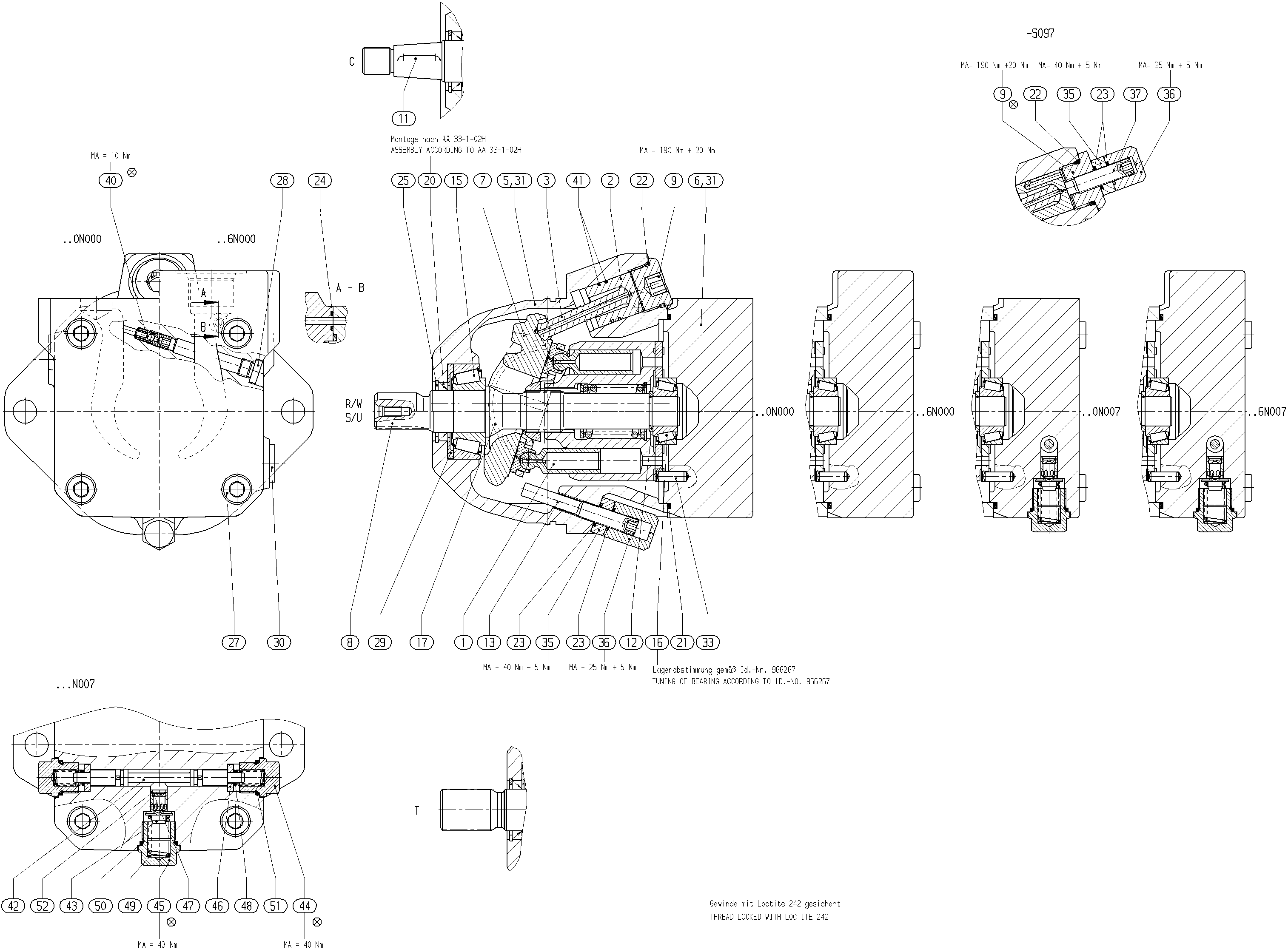

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902501153 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910979311 | ADJUSTING PISTON | 1 | ||
| R902439967 | PISTON ROD | 1 | ||
| R902403013 | MOTOR HOUSING | 1 | ||
| R902434044 | CONNECTION PLATE | 1 | ||
| R902443524 | SWASH PLATE | 1 | ||
| R902501370 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910933408 | STOP SCREW | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902410506 | BEARING SHELL | 2 | ||
| R910988019 | SHAFT SEALING RINGD | 1 | ||
| R902650851 | O-RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R910942133 | R-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910963995 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R910987890 | STOP RING | 1 | ||
| R910901969 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R902424169 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902650529 | R-RING | 2 | ||
| R910976251 | FLUSHING PISTON | 1 | ||
| R909419422 | VALVE SPOOL | 1 | ||
| R909417111 | SCREW PLUG | 2 | ||
| R909417846 | SCREW PLUG | 1 | ||
| R909417112 | WASHER | 2 | ||
| R902030345 | ORIFICE | 1 | ||
| R909417113 | COMPRESSION SPRING | 2 | ||
| R909417848 | COMPRESSION SPRING | 1 | ||
| R910515574 | O-RING | 1 | ||
| R910302139 | O-RING | 2 | ||
| R910800550 | RETAINING RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 28 | 28 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft similar to ISO 3019-1 for high torque | R |
| Mounting flange | Special flange; 2 hole | F |
| Working port | Threaded port according to A and B laterally, Threaded port, UN ISO 11926 same side | 66N00 |
| Valves | Integrated flushing valve (only with working line ports 10N00, 60N00 and 16N00, 66N00) | 7 |
