Unit · ROTARY GROUP
TWA4VSG250M/30L-VZBK00-SO168R902511139
Rotary group Bosch Rexroth series A4VSG, type code TWA4VSG250M/30L-VZBK00-SO168, material number R902511139. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Valves: without valve block (0).
- Number
- R902511139
- Type code
- TWA4VSG250M/30L-VZBK00-SO168
- Group
- A4VSG 250
- Edition
- 06/2020

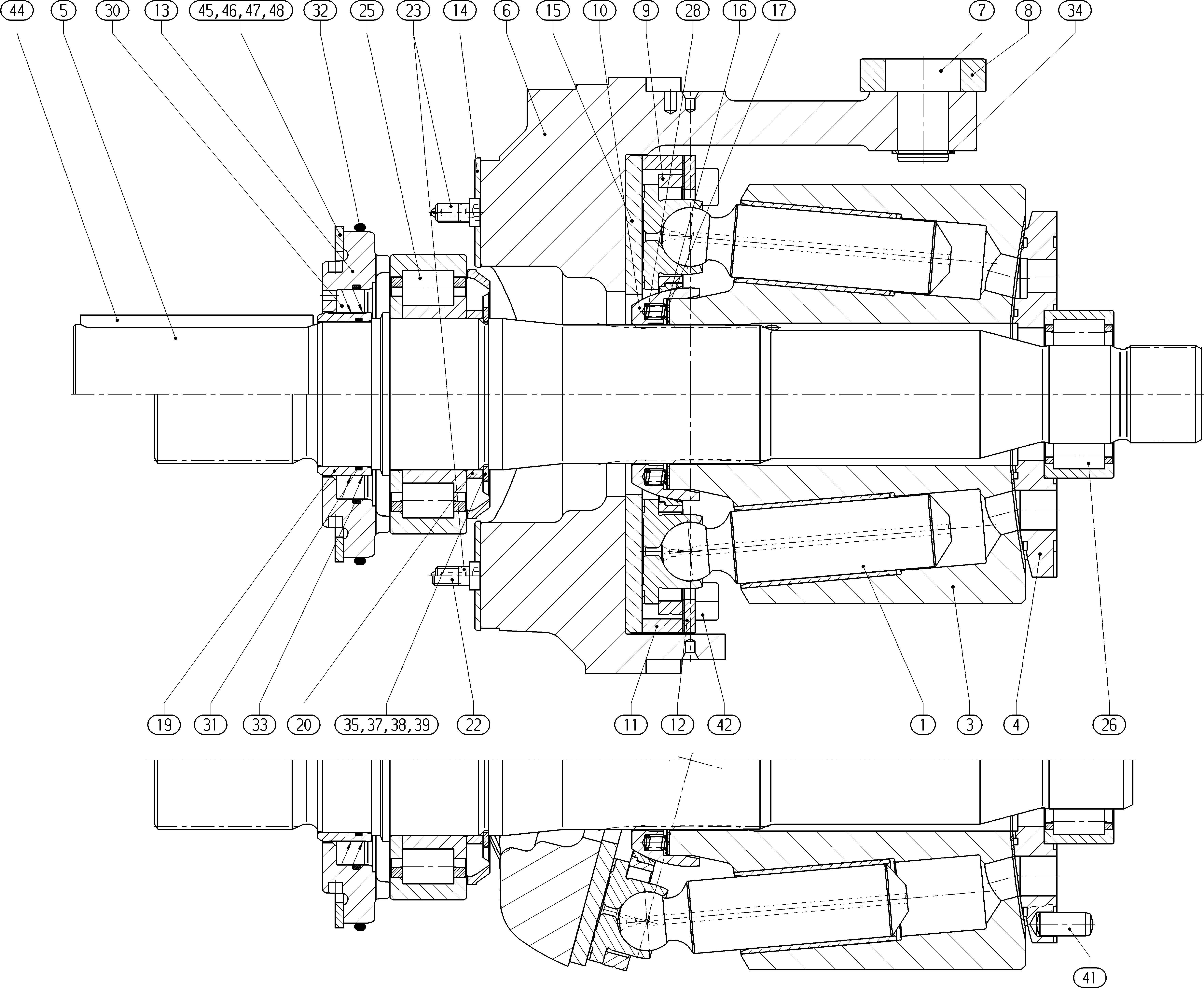

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902436846 | PISTON PAD | 9 | ||
| R910988749 | CYLINDER | 1 | ||
| R910933126 | DISTRIBUTOR PLATE | 1 | ||
| R902408196 | DRIVE SHAFT | 1 | ||
| R910974944 | SWASH PLATE | 1 | ||
| R910909319 | DRIVER PIVOT | 1 | ||
| R910909564 | SLIDER | 1 | ||
| R902439646 | RETAINING PLATE | 1 | ||
| R902488920 | RETAINING BALL | 1 | ||
| R902570172 | SEGMENT | 2 | ||
| R902445288 | SEALING FLANGE | 1 | ||
| R902566854 | BEARING SHELL | 2 | ||
| R910909343 | SLIDING DISC | 1 | ||
| R902400656 | SHIM RING | 2 | ||
| R902400657 | SHIM RING | 1 | ||
| 18 | R902445176 | SHIM RING | 1 | |
| R910989659 | SEAL BUSHING | 1 | ||
| R910974565 | FEED WHEEL | 1 | ||
| R910932882 | SETTING SCREW | 2 | ||
| R902572604 | CYL. ROLLER BEARING | 1 | ||
| R910974719 | CYL. ROLLER BEARING | 1 | ||
| R910966913 | SHAFT SEALING RINGD | 1 | ||
| R910274011 | O-RING | 1 | ||
| R910629944 | O-RINGD | 1 | ||
| R910080616 | O-RING | 1 | ||
| R910187941 | RETAINING RING | 1 | ||
| R910105856 | RETAINING RING | 1 | ||
| R910979458 | RETAINING RING | 1 | ||
| R910979459 | RETAINING RING | 1 | ||
| R910986334 | RETAINING RING | 1 | ||
| R913000823 | STRAIGHT PIN | 1 | ||
| R902650867 | SOCKET HEAD CAP SCREW | 4 | ||
| R910991792 | RETAINING RING | 1 | ||
| R910991793 | RETAINING RING | 1 | ||
| R910991794 | RETAINING RING | 1 | ||
| R910991795 | RETAINING RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 250 | 250 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Valves | Without valve block | 0 |
