Unit · AXIAL-PISTON PUMP

A A10VSO100 DFEH/32R-VSB22U99E -SO541R902511414

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100DFEH/32R-VSB22U99E-SO541, material number R902511414. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive without pulsation damping (22). Rotary group version: high-speed with port plate version 22U (S).

Number
R902511414
Type code
A A10VSO100 DFEH/32R-VSB22U99E -SO541
Group
A10VSO 100
Edition
06/2020

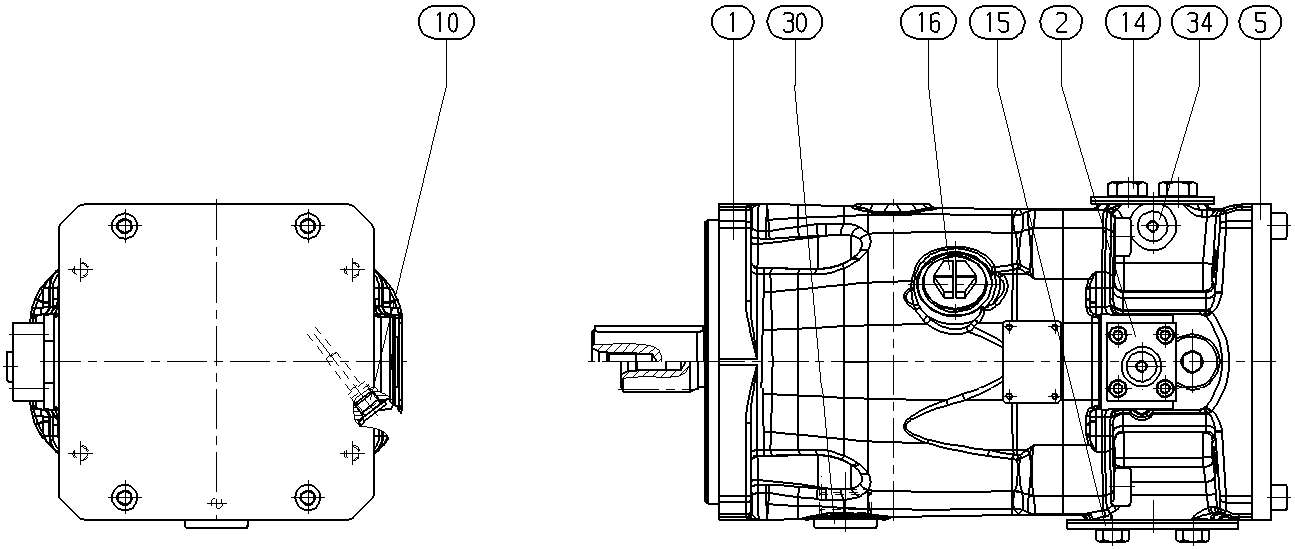

A A10VSO100 DFEH/32R-VSB22U99E -SO541 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902460806BASE UNIT Assembly parts list →L1
R902449557FLANGE COVER2
R902444736COVER Assembly parts list →L1
R909157039SCREW PLUG1
R902400584FLANGE COVER1
R902400594FLANGE COVER1
R902602013SEAL SCREW1
R909156652SCREW PLUG1
R913011609SCREW PLUG1
75R909830326NAMEPLATE1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)100100
SeriesSeries 3, index 232
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftSplined shaft standard shaft ISO 3019-1S
Mounting flangeISO 3019-2; 4-holeB
PortSAE flange ports fastening thread, metric. top, bottom, opposite, with universal through drive without pulsation damping22
Rotary group versionHigh-speed with port plate version 22US
