Unit · PUMP COMBINATION
A15VSO280LRDRE2BHV/10MR+A10VSO71DRG/32R902512011
Pump combination Bosch Rexroth series A15VSO, type code A15VSO280LRDRE2BHV/10MR+A10VSO71DRG/32, material number R902512011. Nominal size: NG 280. Axial piston unit: variable swashplate design, nominal pressure 350bar, maximum pressure 420 bar (A15V). Operating mode: pump, Without charge pump open circuit (SO). Depressurized basic position and external control pressure supply: basic position maximum swivel angle (Vg max), with external control pressure supply (integrated shuttle valve, standard for negative stroke control) (B). Connector for solenoids: HIRSCHMANN connector (H). Swivel angle sensor: optical swivel angle indicator (only for A15VSO) (V). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN (M). Direction of rotation: viewed on drive shaft Clockwise (R).
- Number
- R902512011
- Type code
- A15VSO280LRDRE2BHV/10MR+A10VSO71DRG/32
- Group
- A10VSO 71
- Edition
- 07/2020

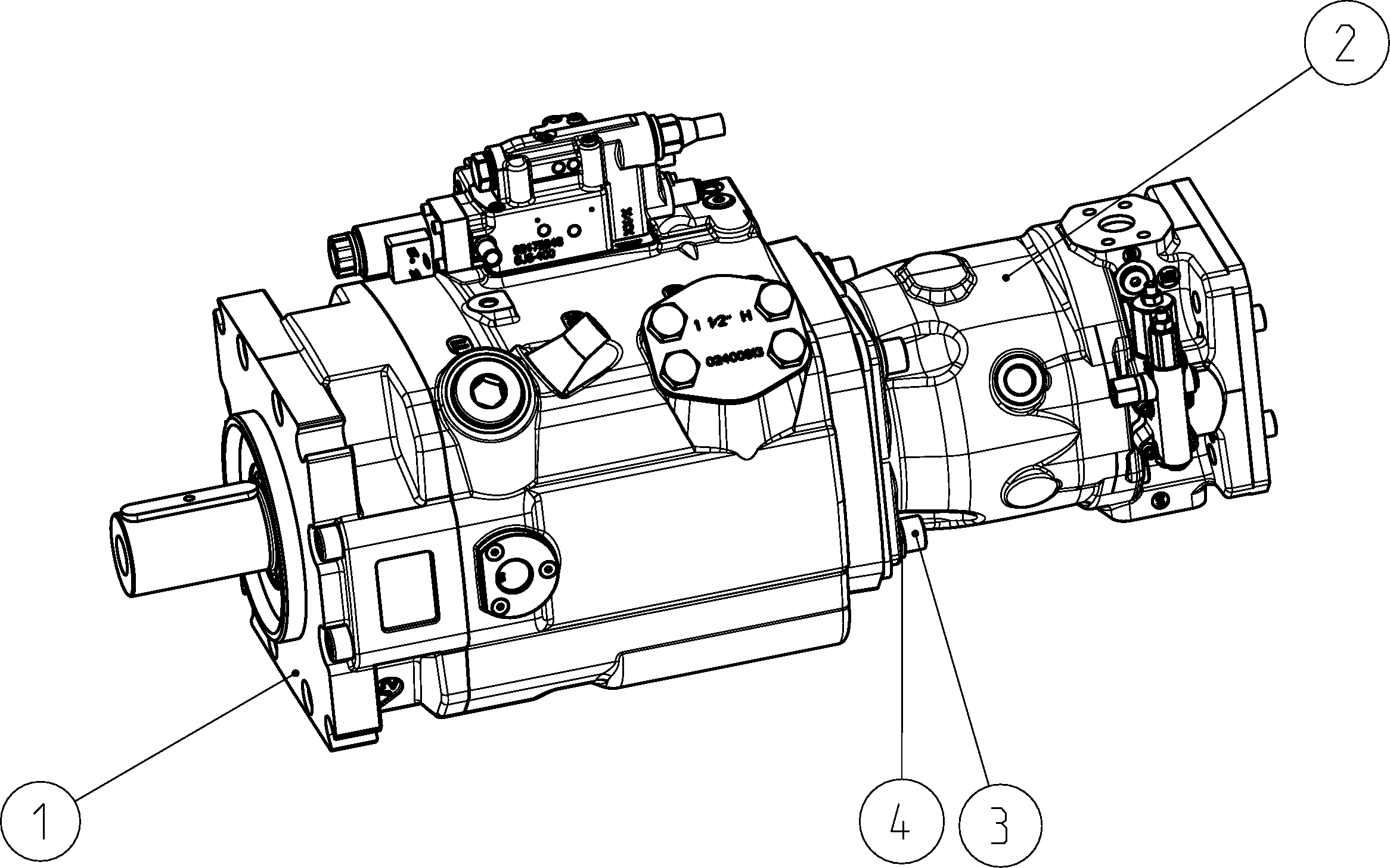

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902512009 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902511947 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 7 | R910120472 | SOCKET HEAD CAP SCREW | 4 | |
| 8 | R902650192 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Variable swashplate design, nominal pressure 350bar, maximum pressure 420 bar | A15V |
| Operating mode | Pump, Without charge pump open circuit | SO |
| Size (NG) | 280 | 280 |
| Depressurized basic position and external control pressure supply | Basic position maximum swivel angle (Vg max), with external control pressure supply (integrated shuttle valve, standard for negative stroke control) | B |
| Connector for solenoids | HIRSCHMANN connector | H |
| Swivel angle sensor | Optical swivel angle indicator (only for A15VSO) | V |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN | M |
| Direction of rotation | Viewed on drive shaft Clockwise | R |
