Unit · AXIAL-PISTON PUMP

P A4VSG 125 HD3 /30R-VPB10KB50NR902512606

Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG125HD3/30R-VPB10KB50N, material number R902512606. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 125, 2-hole 1 1/4 in 14T 12/24DP (KB5). Valves: without valve block (0). Filtration: without filter (N).

Number
R902512606
Type code
P A4VSG 125 HD3 /30R-VPB10KB50N
Group
A4VSG 125
Edition
07/2020

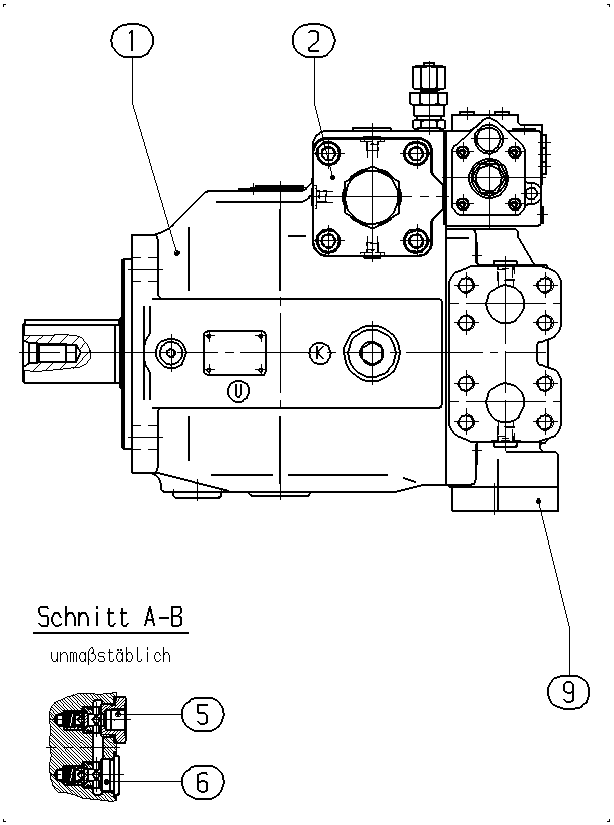

P A4VSG 125 HD3 /30R-VPB10KB50N — Drawing
Pos.NumberNameQtyAdd to inquiry
R902512604BASE UNIT Assembly parts list →L1
R902512605CONTROL Assembly parts list →L1
R910906960VALVE MOUNTING KIT1
R910906959VALVE MOUNTING KIT1
R902412337BLANK FLANGE Assembly parts list →L1
61R902421947SHIPPING PROTECTION2
R902602013SEAL SCREW1
64R902602011SEAL SCREW1
71R902568998FLANGE COVER Assembly parts list →L1
81R902602008SEAL SCREW2
82R910723126PLUG1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 350 bar, maximum pressureA4VS
Operating modePump, closed circuitG
Size (NG)125125
SeriesSeries 3, index 030
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Drive shaftParallel keyed shaft DIN 6885P
Mounting flangeBased on ISO 3019-2 metric 4-holeB
Working portSAE flange ports A and B, located on same side, metric fastening thread10
Through-drive125, 2-hole 1 1/4 in 14T 12/24DPKB5
ValvesWithout valve block0
FiltrationWithout filterN
