Unit · ROTARY GROUP
TW A20VO 520 M/10L-VZHK00 -S2043R902514455
Rotary group Bosch Rexroth series A20VO, type code TWA20VO520M/10L-VZHK00-S2043, material number R902514455. Nominal size: NG 520. Axial piston unit: swashplate design, variable (back to back version) (A20V). Operating mode: double pump, open circuit (O). Directions of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: based on ISO 3019-2 8-hole (H).
- Number
- R902514455
- Type code
- TW A20VO 520 M/10L-VZHK00 -S2043
- Group
- A20VO 520
- Edition
- 06/2020

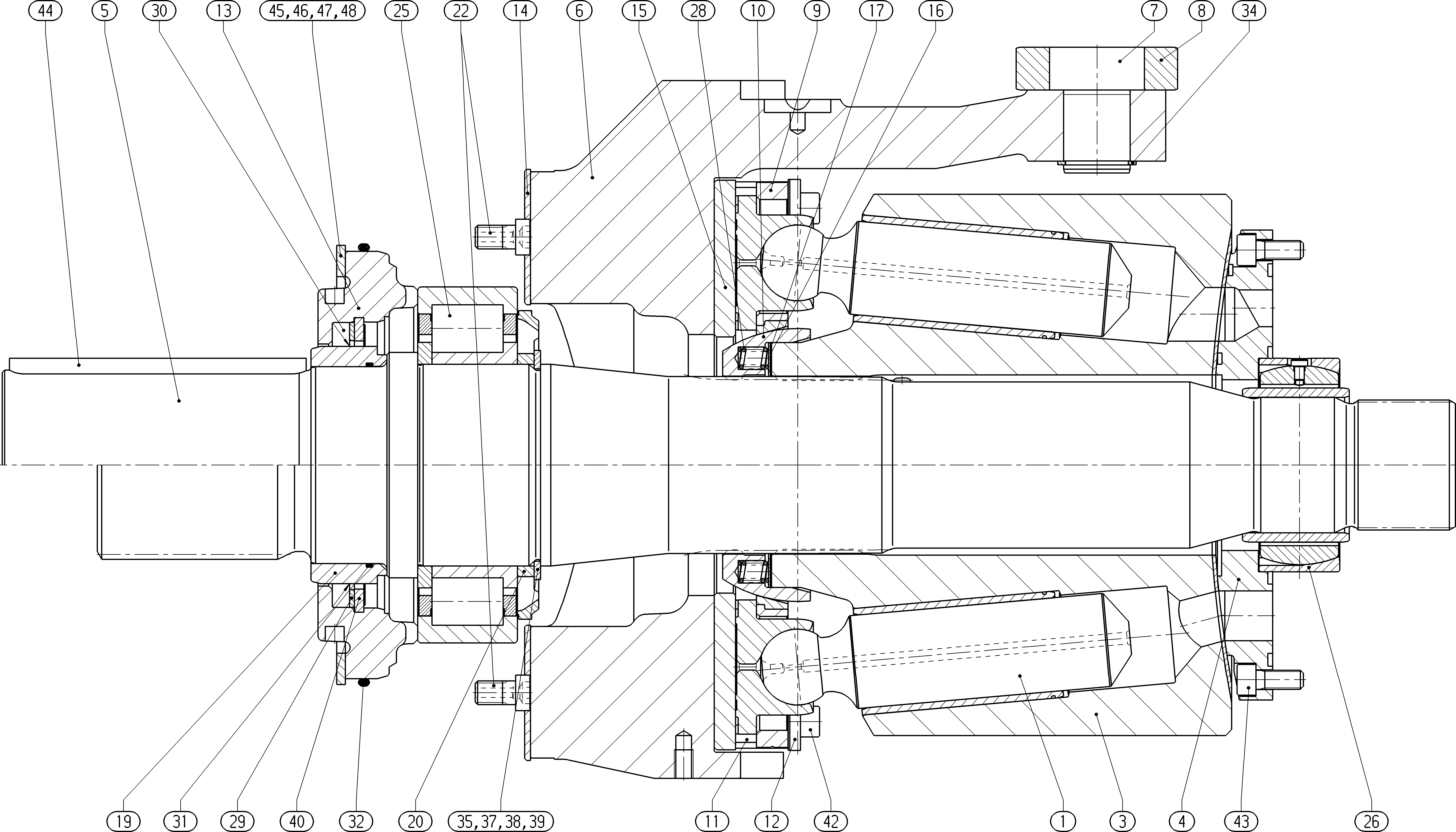

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902514453 | PISTON PAD | 9 | ||
| R902476826 | CYLINDER | 1 | ||
| R902491231 | DISTRIBUTOR PLATE | 1 | ||
| R902536767 | DRIVE SHAFT | 1 | ||
| R910910908 | SWASH PLATE | 1 | ||
| R910910927 | DRIVER PIVOT | 1 | ||
| R910910926 | SLIDER | 1 | ||
| R910971077 | RETAINING PLATE | 1 | ||
| R910975577 | RETAINING BALL | 1 | ||
| R910965066 | SPACER SEGMENT | 4 | ||
| R902570176 | SEGMENT | 4 | ||
| R910992070 | SEALING FLANGE | 1 | ||
| R910946530 | BEARING SHELL | 2 | ||
| R902439281 | SLIDING DISC | 1 | ||
| R910973964 | SHIM RING | 2 | ||
| R910973965 | SHIM RING | 2 | ||
| R910991528 | SEAL BUSHING | 1 | ||
| R910978401 | FEED WHEEL | 1 | ||
| R910969259 | SETTING SCREW | 2 | ||
| R910978421 | CYL. ROLLER BEARING | 1 | ||
| R902476715 | SLEEVE BEARING | 1 | ||
| R910964900 | COMPRESSION SPRING | 20 | ||
| R902402165 | SHIM RING | 1 | ||
| R910983303 | SHAFT SEALING RING | 1 | ||
| R910470503 | O-RING | 1 | ||
| R910707503 | O-RING | 1 | ||
| R910187968 | RETAINING RING | 1 | ||
| R910188034 | RETAINING RING | 1 | ||
| R910979461 | RETAINING RING | 1 | ||
| R910979462 | RETAINING RING | 1 | ||
| R910986797 | RETAINING RING | 1 | ||
| R910574406 | RETAINING RING | 1 | ||
| R902650870 | SOCKET HEAD CAP SCREW | 8 | ||
| R910109452 | SOCKET HEAD CAP SCREW | 6 | ||
| R910992071 | RETAINING RING | 1 | ||
| R910992072 | RETAINING RING | 1 | ||
| R910992073 | RETAINING RING | 1 | ||
| R910992074 | RETAINING RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable (back to back version) | A20V |
| Operating mode | Double pump, open circuit | O |
| Size (NG) | 520 | 520 |
| Series | Series 1, index 0 | 10 |
| Directions of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | Based on ISO 3019-2 8-hole | H |
