Unit · PUMP COMBINATION
A15VSO280LRDRE2BHV+A15VSO110DRGA0VR902515226
Pump combination Bosch Rexroth series A15VSO, type code A15VSO280LRDRE2BHV+A15VSO110DRGA0V, material number R902515226. Nominal size: NG 280. Axial piston unit: variable swashplate design, nominal pressure 5100 psi (350 bar), maximum pressure 6100 psi (420 bar) (A15V). Operating mode: pump, Without charge pump open circuit (SO). Depressurized basic position and external control pressure supply: basic position maximum swivel angle (Vg max), with external control pressure supply (integrated shuttle valve, standard for negative stroke control) (B). Connector for solenoids: HIRSCHMANN connector (H). Swivel angle sensor: optical swivel angle indicator (only for A15VSO) (V).
- Number
- R902515226
- Type code
- A15VSO280LRDRE2BHV+A15VSO110DRGA0V
- Group
- A15VSO 280
- Edition
- 06/2020

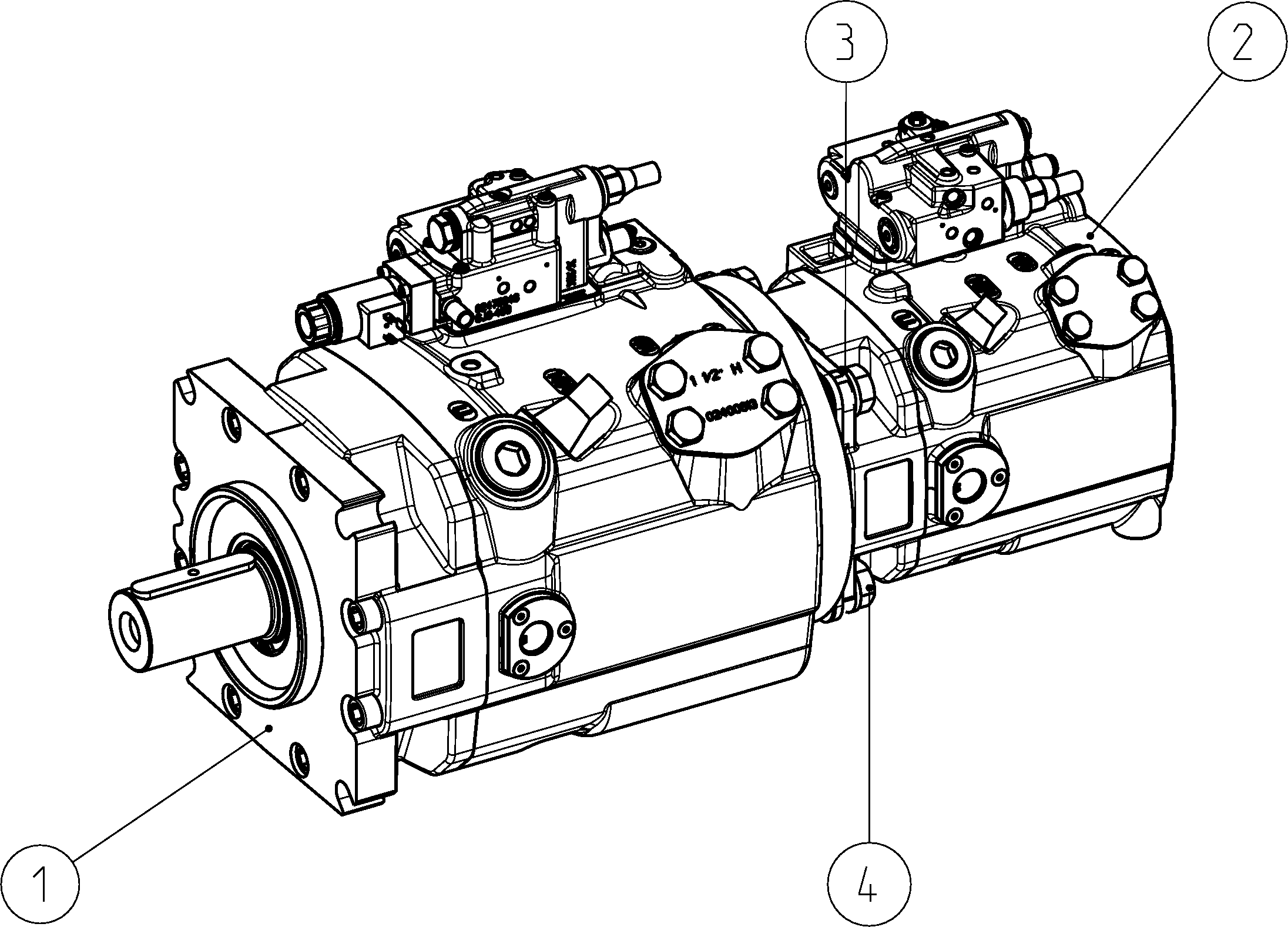

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902515222 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902515224 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902650194 | WASHER | 4 | ||
| R909152538 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Variable swashplate design, nominal pressure 5100 psi (350 bar), maximum pressure 6100 psi (420 bar) | A15V |
| Operating mode | Pump, Without charge pump open circuit | SO |
| Size (NG) | 280 | 280 |
| Depressurized basic position and external control pressure supply | Basic position maximum swivel angle (Vg max), with external control pressure supply (integrated shuttle valve, standard for negative stroke control) | B |
| Connector for solenoids | HIRSCHMANN connector | H |
| Swivel angle sensor | Optical swivel angle indicator (only for A15VSO) | V |
