Unit · BASE UNIT
GA10VE28OZ/52W1-VTF10N000-S2129R902516149
Base unit Bosch Rexroth series A10VM, type code GA10VE28OZ/52W1-VTF10N000-S2129, material number R902516149. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10V). Operating mode: motor, plug-in design, open and closed circuits (E). Direction of rotation: viewed on drive shaft bi-directional (W). Minimum displacement: vg min [cm3] steplessly adjustable from/to (1). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: special flange; 2 hole (F). Working port: flange ports according to A and B laterally, Metric fastening thread ISO 6162 same side (10N00). Valves: without valve (0). Special version no. 2129.
- Number
- R902516149
- Type code
- GA10VE28OZ/52W1-VTF10N000-S2129
- Group
- A10VE 28
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

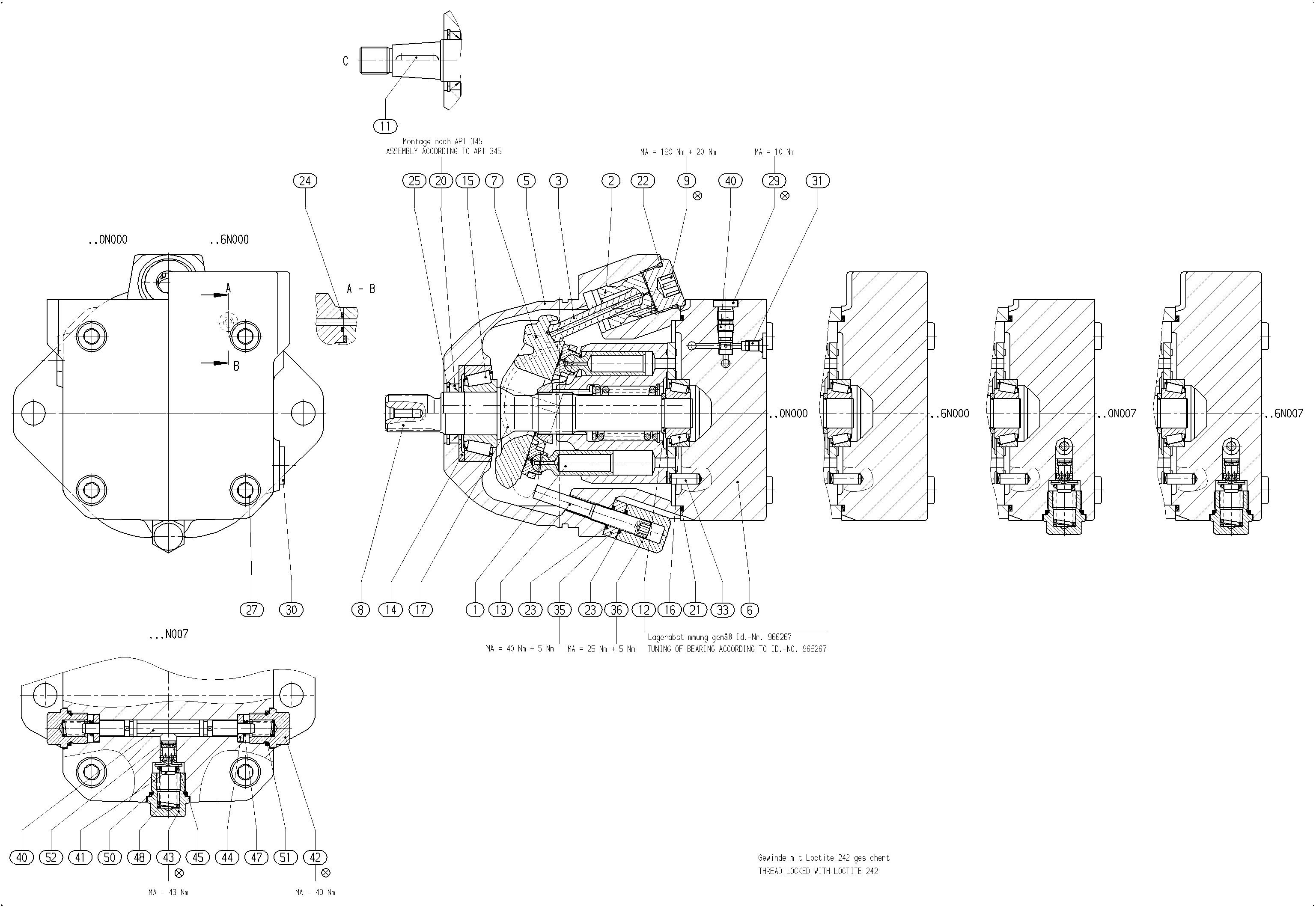

| R910988570 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910979311 | ADJUSTING PISTON | 1 | ||
| R902439967 | PISTON ROD | 1 | ||
| R902403013 | MOTOR HOUSING | 1 | ||
| R902403014 | CONNECTION PLATE | 1 | ||
| R902443524 | SWASH PLATE | 1 | ||
| R902431430 | DRIVE SHAFT | 1 | ||
| R902451613 | SCREW PLUG | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910933408 | STOP SCREW | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902410506 | BEARING SHELL | 2 | ||
| R910988019 | SHAFT SEALING RINGD | 1 | ||
| R902650851 | O-RINGD | 1 | ||
| R910804886 | O-RINGD | 2 | ||
| R910942133 | R-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910963995 | SOCKET HEAD CAP SCREW | 4 | ||
| R910987890 | STOP RING | 1 | ||
| R913011608 | SCREW PLUGD | 1 | ||
| R910901969 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R902424169 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902650529 | R-RING | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10V |
| Operating mode | Motor, plug-in design, open and closed circuits | E |
| Size (NG) | 28 | 28 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Minimum displacement | Vg min [cm3] steplessly adjustable from/to | 1 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Special flange; 2 hole | F |
| Working port | Flange ports according to A and B laterally, Metric fastening thread ISO 6162 same side | 10N00 |
| Valves | Without valve | 0 |
