Unit · PUMP COMBINATION
A11VO175E2S0+A11VO175E2S0+A4VG145EP2D00R902516690
Pump combination Bosch Rexroth series A11VO, type code A11VO175E2S0+A11VO175E2S0+A4VG145EP2D00, material number R902516690. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O).
- Number
- R902516690
- Type code
- A11VO175E2S0+A11VO175E2S0+A4VG145EP2D00
- Group
- A11VO 175
- Edition
- 06/2020

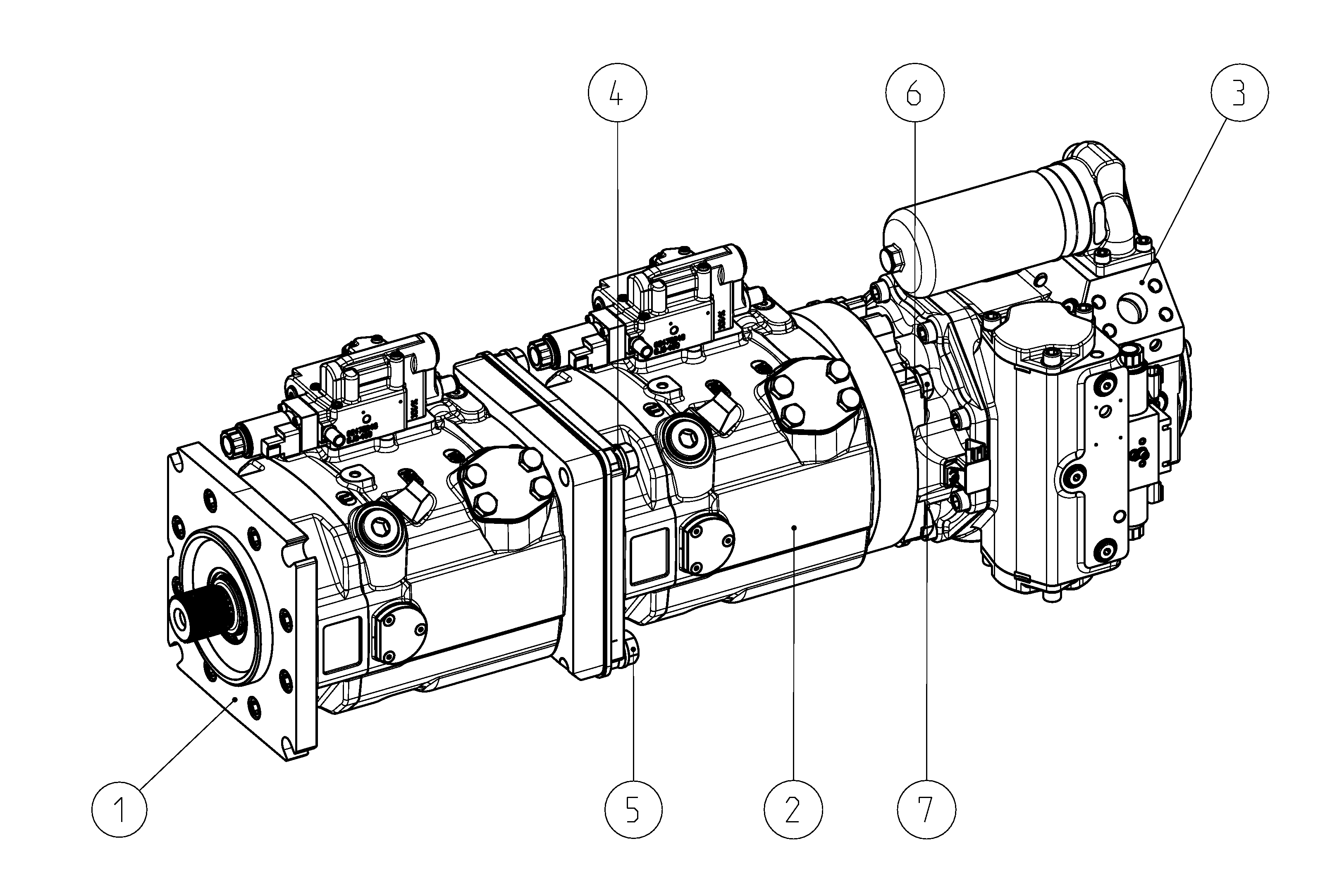

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902516688 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902494997 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902222012 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902650194 | WASHER | 4 | ||
| R909084826 | HEXAGON SCREW | 4 | ||
| R902650194 | WASHER | 4 | ||
| R909152538 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 175 | 175 |
