Unit · PUMP COMBINATION
A11VO145LRDRS0A00/40+A11VO145LRDRS0A00/R902517208
Pump combination Bosch Rexroth series A11VO, type code A11VO145LRDRS0A00/40+A11VO145LRDRS0A00/, material number R902517208. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: power controller fixed setting, with pressure cut-off (LRD).
- Number
- R902517208
- Type code
- A11VO145LRDRS0A00/40+A11VO145LRDRS0A00/
- Group
- A11VO 145
- Edition
- 06/2020

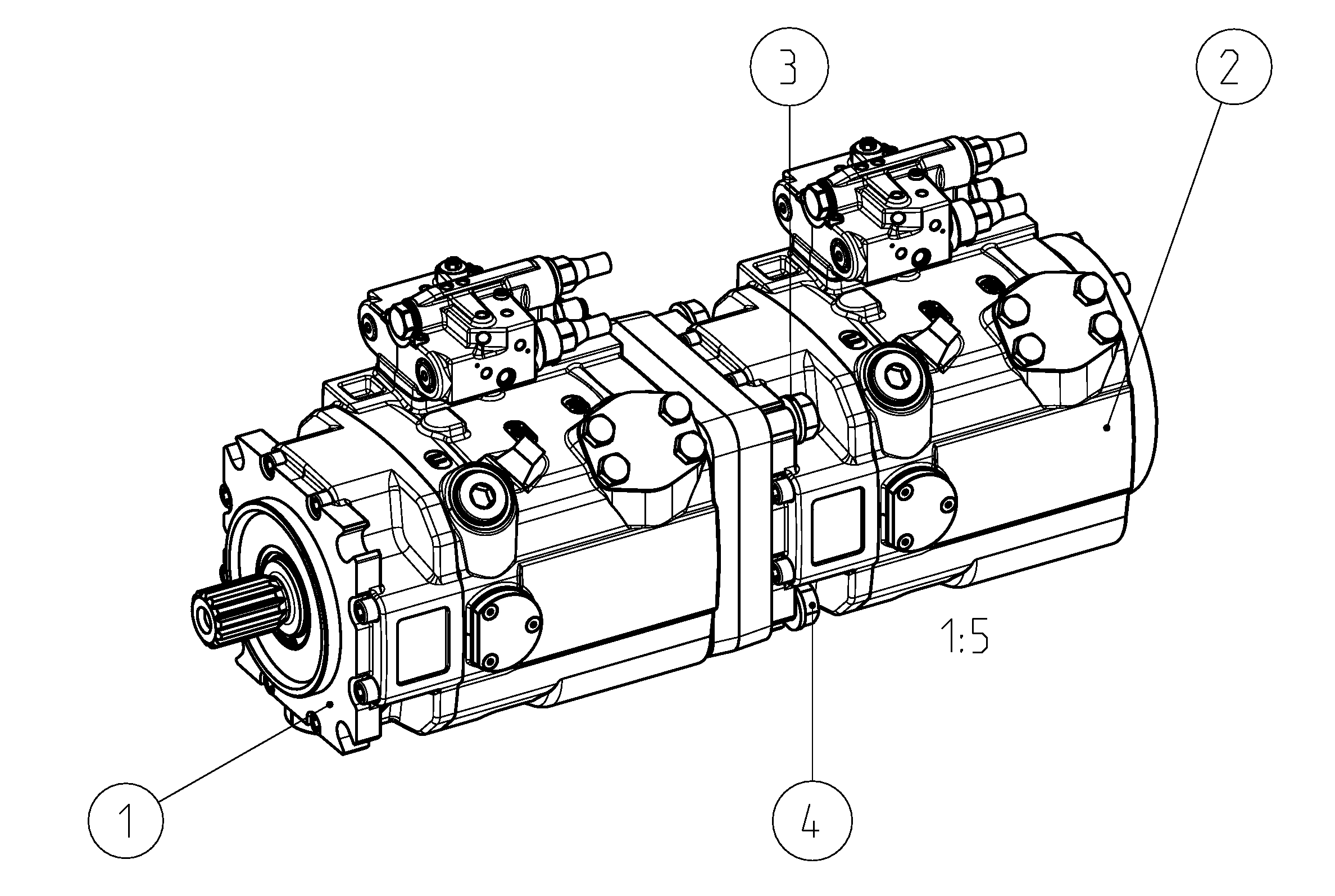

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902516752 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902516750 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902650194 | WASHER | 4 | ||
| R909084826 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 145 | 145 |
| Control device | Power controller fixed setting, with pressure cut-off | LRD |
| Index | Size 40 … 130 | 0 |
