Unit · PUMP COMBINATION

A11VO210L2S5APB/40MR+AZPFF-11-016/016RR&R902517354

Pump combination Bosch Rexroth series A11VO, type code A11VO210L2S5APB/40MR+AZPFF-11-016/016RR&, material number R902517354. Nominal size: NG 210. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Direction of rotation: viewed on drive shaft clockwise (R).

Number
R902517354
Type code
A11VO210L2S5APB/40MR+AZPFF-11-016/016RR&
Group
A11VO 210
Edition
06/2020

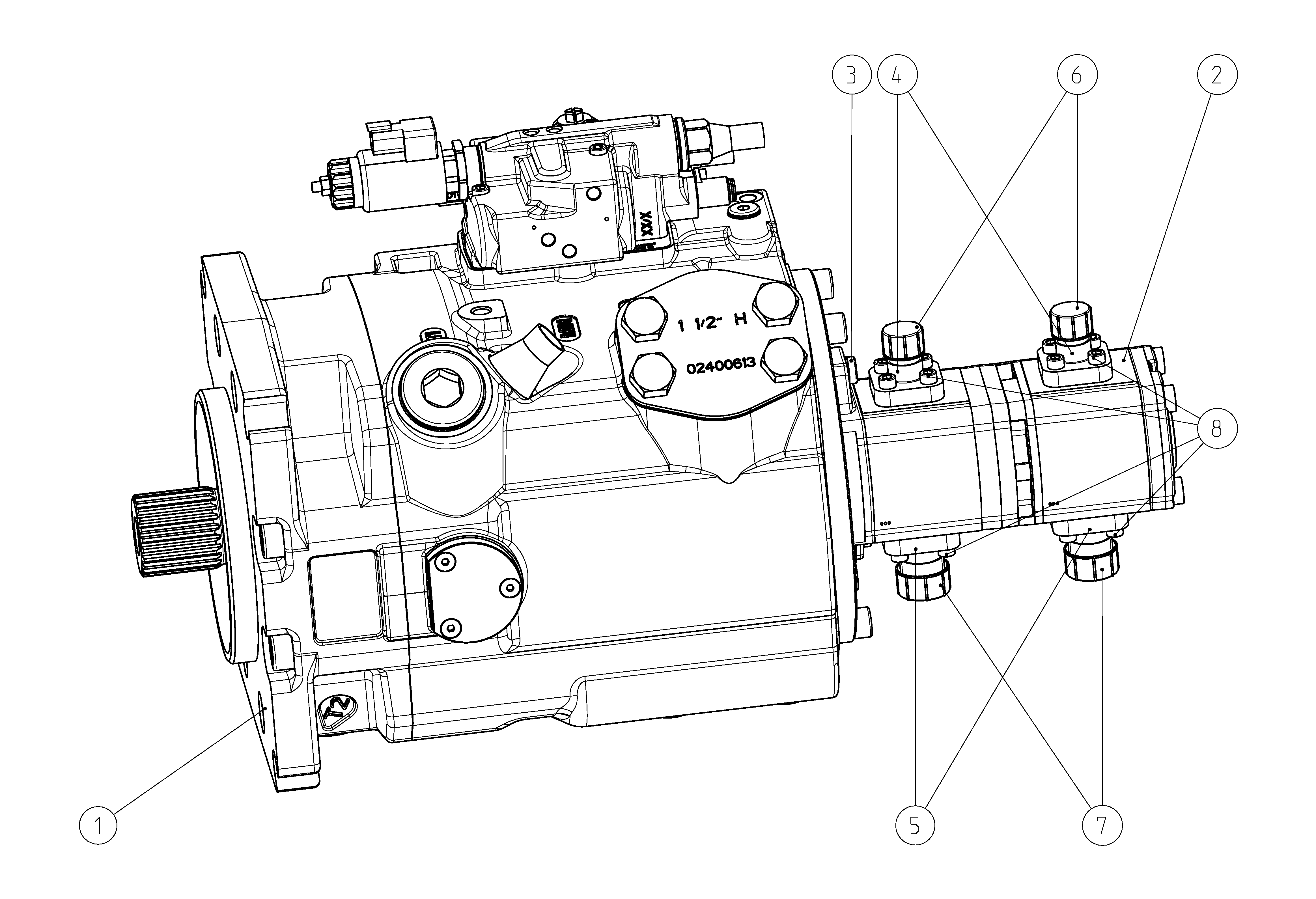

A11VO210L2S5APB/40MR+AZPFF-11-016/016RR& — Drawing
Pos.NumberNameQtyAdd to inquiry
R902517317AXIAL-PISTON PUMP Assembly parts list →L1
0510665141HYDRAULIC GEAR PUMPL1
R910109592SOCKET HEAD CAP SCREW2
R902601174FLANGE Assembly parts list →L2
R902601107FLANGE Assembly parts list →L2
R913030070SCREW CAP2
R913030071SCREW CAP2
R910109304SOCKET HEAD CAP SCREW16

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 350 bar, maximum pressure 400 barA11V
Operating modePump, open circuit without charge pumpO
Size (NG)210210
Direction of rotationViewed on drive shaft clockwiseR
