Unit · BASE UNIT
GA1VO03500CXX0/10BLVB2XX100000-0R902518130
Base unit Bosch Rexroth series A1VO, type code GA1VO03500CXX0/10BLVB2XX100000-0, material number R902518130.
- Number
- R902518130
- Type code
- GA1VO03500CXX0/10BLVB2XX100000-0
- Group
- A1VO 3500
- Edition
- 06/2020

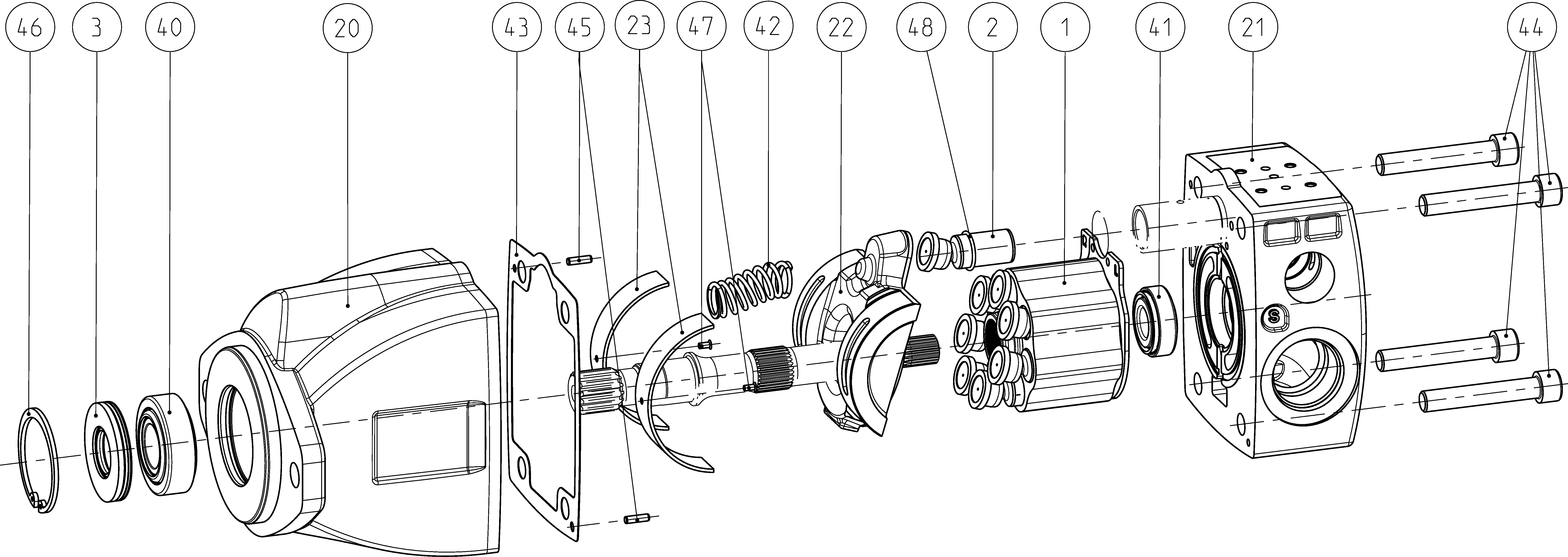

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902515687 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902545715 | POSITIONING PISTON Assembly parts list →L | 1 | ||
| R902515702 | BEARING COVER Assembly parts list →L | 1 | ||
| R902514804 | PUMP HOUSING | 1 | ||
| R902560015 | CONNECTION PLATE | 1 | ||
| R902513198 | SWASH PLATE | 1 | ||
| R902514794 | BEARING SHELL | 2 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910947314 | COMPRESSION SPRING | 1 | ||
| R902495608 | FLAT GASKET | 1 | ||
| R909083099 | SOCKET HEAD CAP SCREW | 4 | ||
| R913001000 | STRAIGHT PIN | 2 | ||
| R902490806 | RETAINING RING | 1 | ||
| R902514583 | COUNTERSUNK-HEAD SCREW | 1 |
