Unit · BASE UNIT
G A4VBO 125 'HS' M/30R-VZB25K33 -S1569R902518832
Base unit Bosch Rexroth series A4VBO, type code GA4VBO125'HS'M/30R-VZB25K33-S1569, material number R902518832.
- Number
- R902518832
- Type code
- G A4VBO 125 'HS' M/30R-VZB25K33 -S1569
- Group
- A4VBO 125
- Edition
- 07/2020

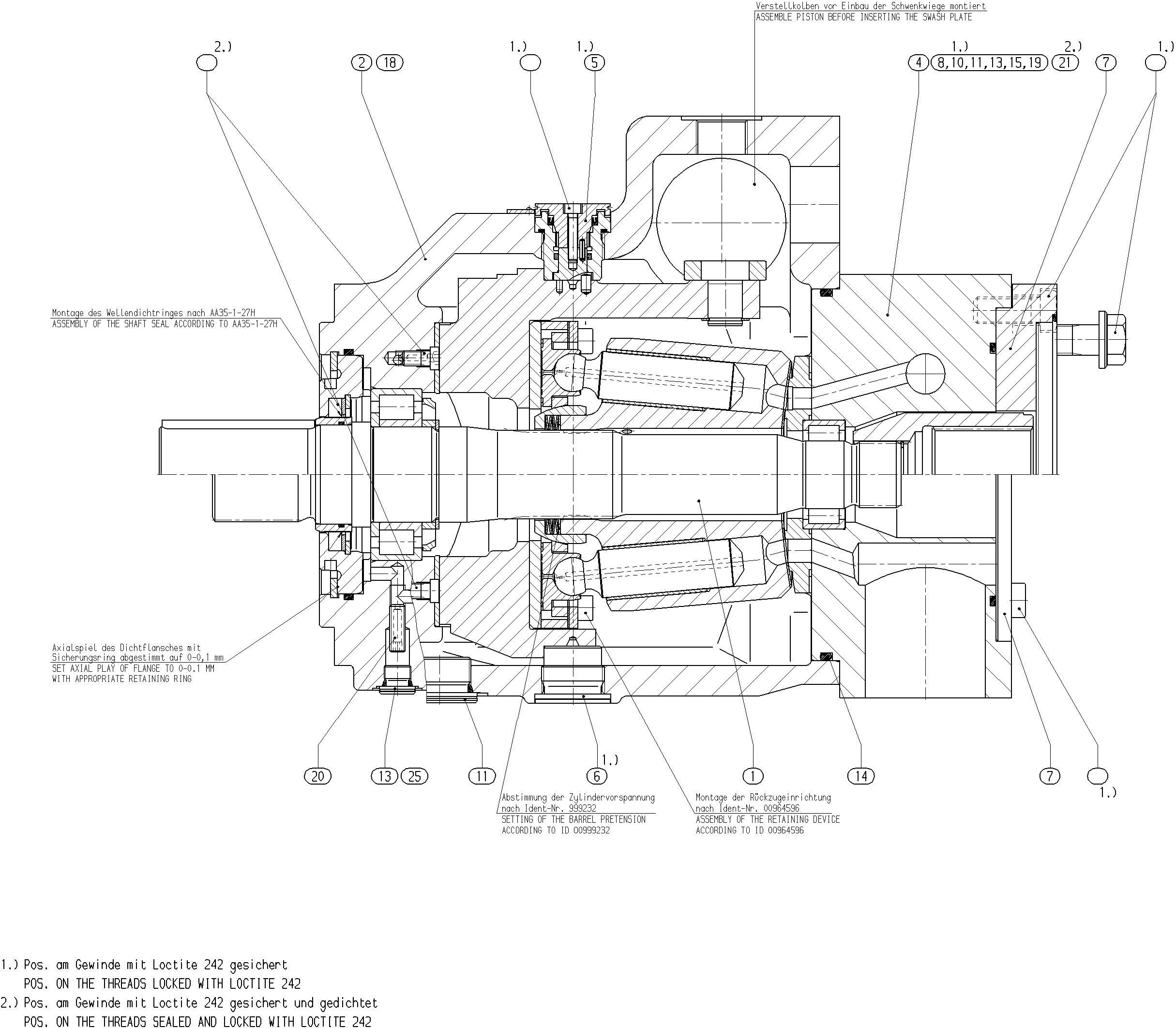

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902405669 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902482283 | PUMP HOUSING | 1 | ||
| R902448483 | CONNECTION PLATE | 1 | ||
| R910970503 | INDICATING DEVICE Assembly parts list →L | 1 | ||
| R910929476 | STUD BOLT Assembly parts list →L | 1 | ||
| R902518830 | ATTACHMENT KIT | 1 | ||
| R902650908 | SOCKET HEAD CAP SCREW | 4 | ||
| R902602115 | SCREW PLUGD | 3 | ||
| R909831482 | SCREW PLUGD | 3 | ||
| R910929492 | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910987283 | THROTTLE SCREW | 1 | ||
| R910922276 | NOZZLE | 1 | ||
| R910979852 | REFERENCE PLATE | 1 |
