Unit · AXIAL-PISTON PUMP
P A4VSG 355 HD3DT /30R-VPB10KB50N-SO314R902519149
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG355HD3DT/30R-VPB10KB50N-SO314, material number R902519149. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 125, 2-hole 1 1/4 in 14T 12/24DP (KB5). Valves: without valve block (0). Filtration: without filter (N). Special version no. 314.
- Number
- R902519149
- Type code
- P A4VSG 355 HD3DT /30R-VPB10KB50N-SO314
- Group
- A4VSG 355
- Edition
- 07/2020

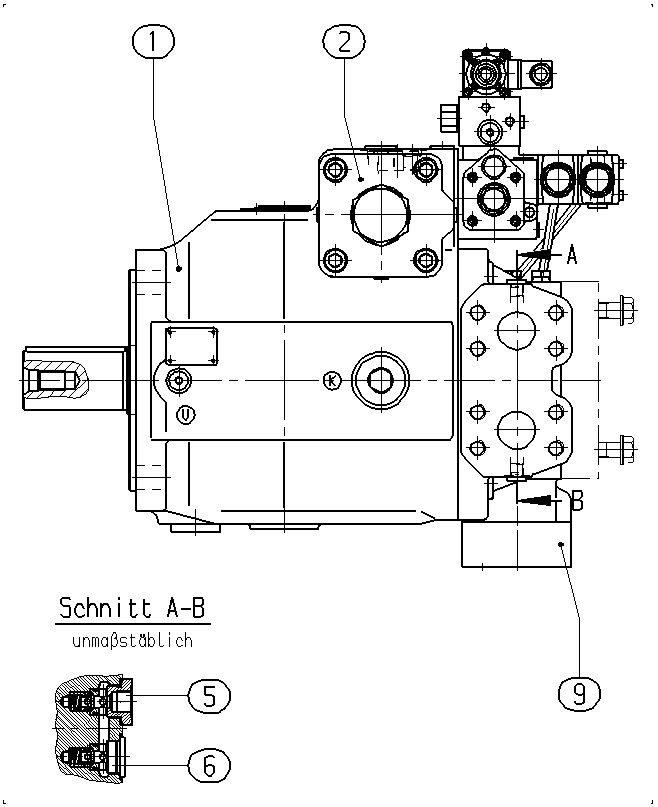

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902519521 | BASE UNIT Assembly parts list →L | 1 | ||
| R902519147 | CONTROL Assembly parts list →L | 1 | ||
| R910948831 | VALVE MOUNTING KIT | 1 | ||
| R910907074 | VALVE MOUNTING KIT | 1 | ||
| R902414309 | BLANK FLANGE Assembly parts list →L | 1 | ||
| 61 | R902805709 | SHIPPING PROTECTION | 2 | |
| 62 | R902602206 | SEAL SCREW | 1 | |
| 64 | R902602013 | SEAL SCREW | 1 | |
| 71 | R902568998 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602010 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 125, 2-hole 1 1/4 in 14T 12/24DP | KB5 |
| Valves | Without valve block | 0 |
| Filtration | Without filter | N |
