Unit · AXIAL-PISTON PUMP
AA10VWO28DR/52W-VSC70N&R902519492
Axial piston pump Bosch Rexroth series A10VWO, type code AA10VWO28DR/52W-VSC70N&, material number R902519492. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar (A10VW). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft according to ISO 3019-1 (S). Mounting flange: ISO 3019-1 2-hole (C). Working port: threaded ports rear pipe thread (DIN ISO 228) (70).
- Number
- R902519492
- Type code
- AA10VWO28DR/52W-VSC70N&
- Group
- A10VWO 28
- Edition
- 06/2020

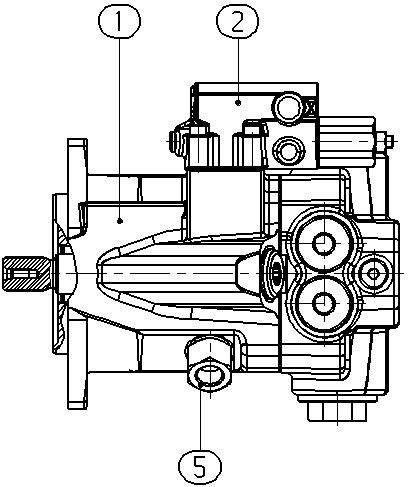

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902504523 | BASE UNIT Assembly parts list →L | 1 | ||
| R902453112 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 3 | R902504524 | SWIVEL ANGLE SENSOR Assembly parts list →L | 1 | |
| R910929857 | ADAPTER Assembly parts list →L | 2 | ||
| 70 | R909831379 | GUARD PLUG | 1 | |
| 71 | R909831382 | GUARD PLUG | 1 | |
| 72 | R902602010 | SEAL SCREW | 2 | |
| 75 | R909830326 | NAMEPLATE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar, maximum pressure 280 bar | A10VW |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft according to ISO 3019-1 | S |
| Mounting flange | ISO 3019-1 2-hole | C |
| Working port | Threaded ports rear pipe thread (DIN ISO 228) | 70 |
