Unit · AXIAL-PISTON PUMP
A11VLO280LRDRE2CP0/40MR+LA10VO28DR/31R&R902520578
Axial piston pump Bosch Rexroth series A11VO, type code A11VLO280LRDRE2CP0/40MR+LA10VO28DR/31R&, material number R902520578. Nominal size: NG 280. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: power controller fixed setting, with pressure cut-off (LRD).
- Number
- R902520578
- Type code
- A11VLO280LRDRE2CP0/40MR+LA10VO28DR/31R&
- Group
- A11VLO 280
- Edition
- 06/2020

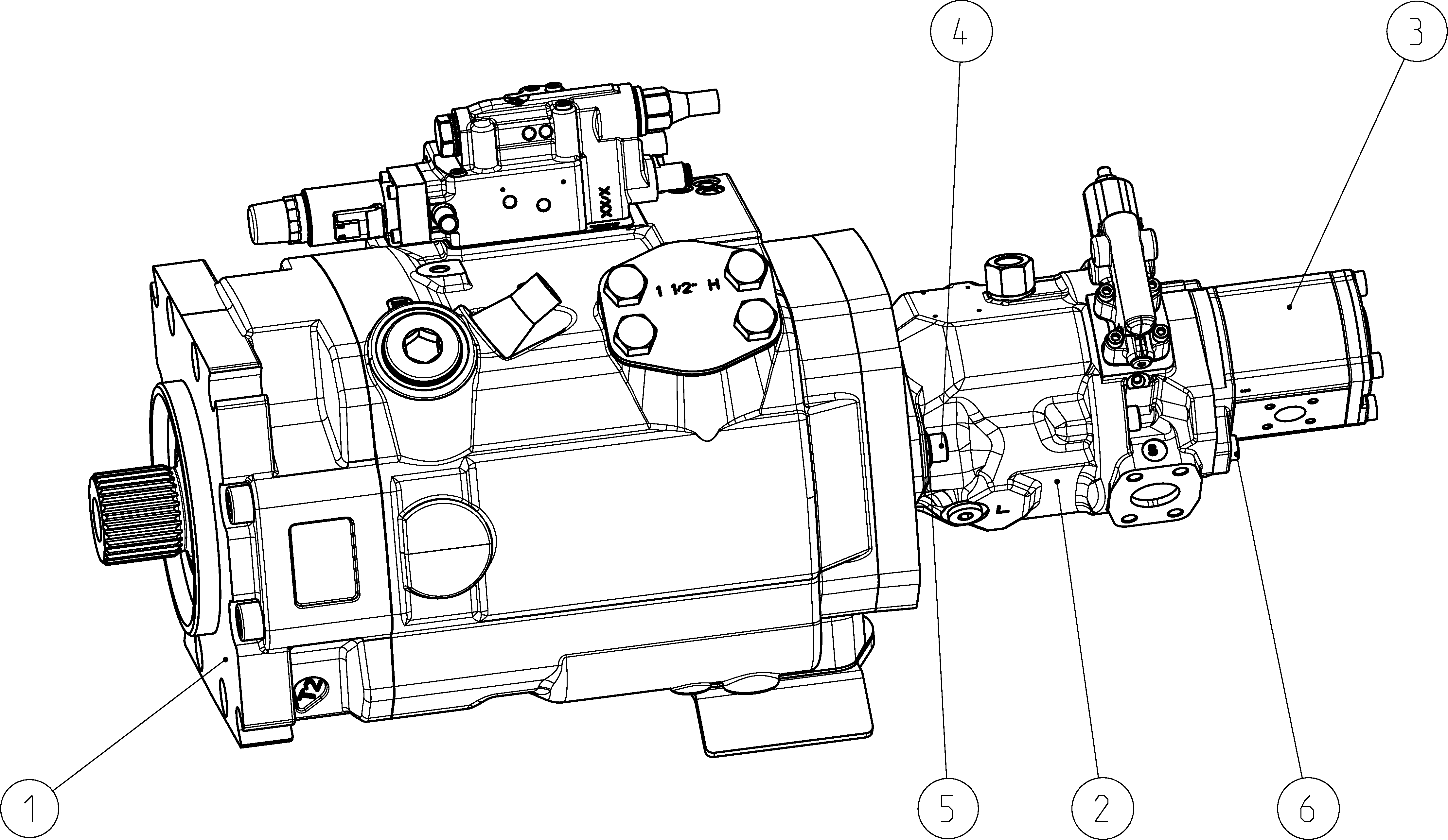

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902533628 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902481074 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510725102 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910109762 | SOCKET HEAD CAP SCREW | 2 | ||
| R910186732 | WASHER | 2 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 | ||
| 71 | R902448945 | FLANGE COVER | 1 | |
| 72 | R902448945 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 280 | 280 |
| Control device | Power controller fixed setting, with pressure cut-off | LRD |
