Unit · AXIAL-PISTON PUMP
LA11VLO280LRDRE2CP0/40MRVE4A41SE4A40-SR902520776
Axial piston pump Bosch Rexroth series A11VO, type code LA11VLO280LRDRE2CP0/40MRVE4A41SE4A40-S, material number R902520776. Nominal size: NG 280. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: power controller fixed setting, with pressure cut-off (LRD). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Standard/special version: special version (S).
- Number
- R902520776
- Type code
- LA11VLO280LRDRE2CP0/40MRVE4A41SE4A40-S
- Group
- A11VLO 280
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

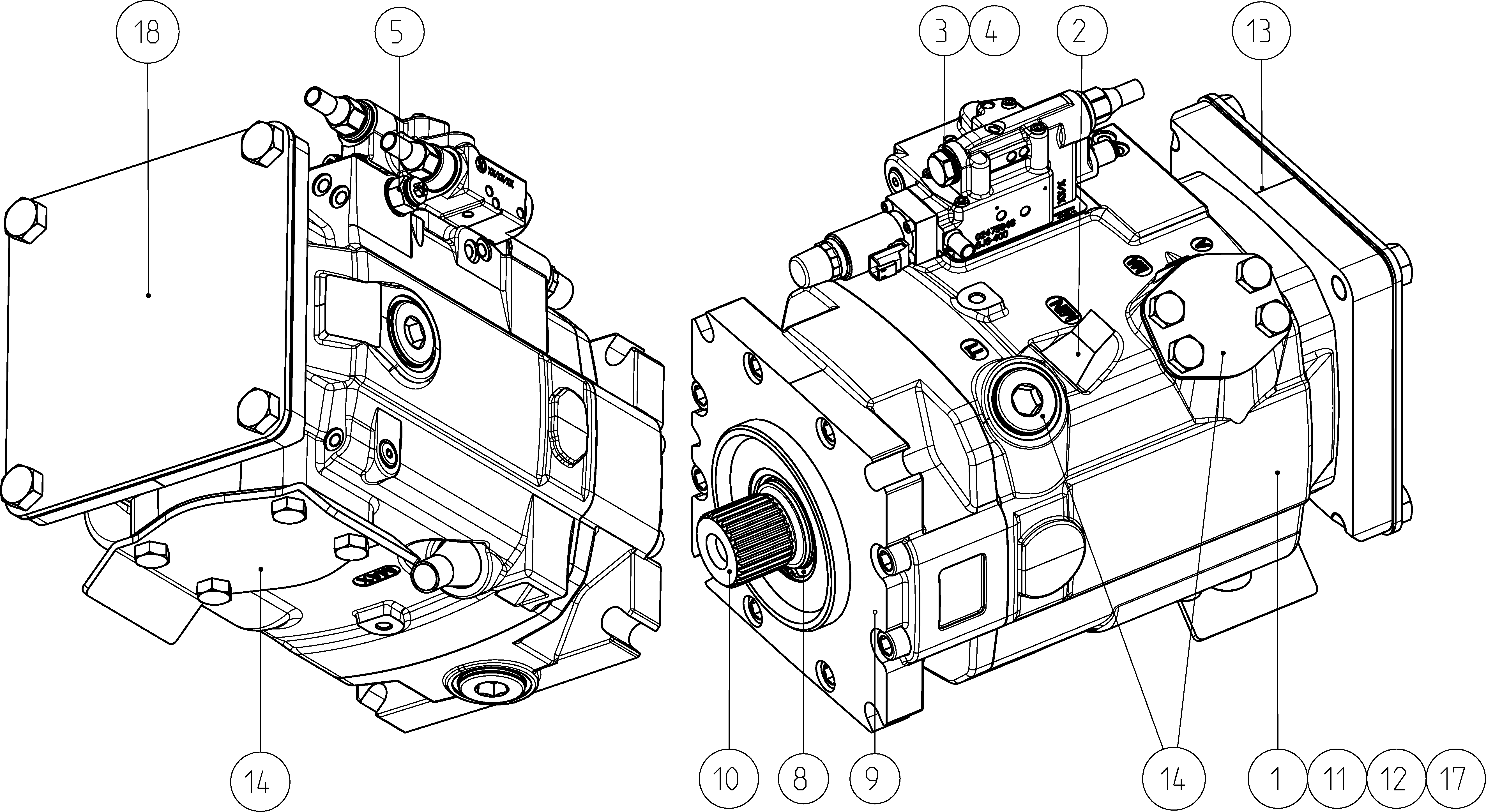

| R902549111 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 280 | 280 |
| Control device | Power controller fixed setting, with pressure cut-off | LRD |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Standard/special version | Special version | S |
