Unit · AXIAL-PISTON PUMP
A A10VSO100 DRS /32R-VPB12N00 -S1439R902521403
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO100DRS/32R-VPB12N00-S1439, material number R902521403. Nominal size: NG 100. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged (DRS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885, limited suitability for through drive (P). Mounting flange: ISO 3019-2; 4-hole (B). Port: SAE flange ports fastening thread, top, bottom, opposite metric. (12). Through drive: without through drive (N00). Rotary group version: high-speed with port plate version 22U (S).
- Number
- R902521403
- Type code
- A A10VSO100 DRS /32R-VPB12N00 -S1439
- Group
- A10VSO 100
- Edition
- 06/2020

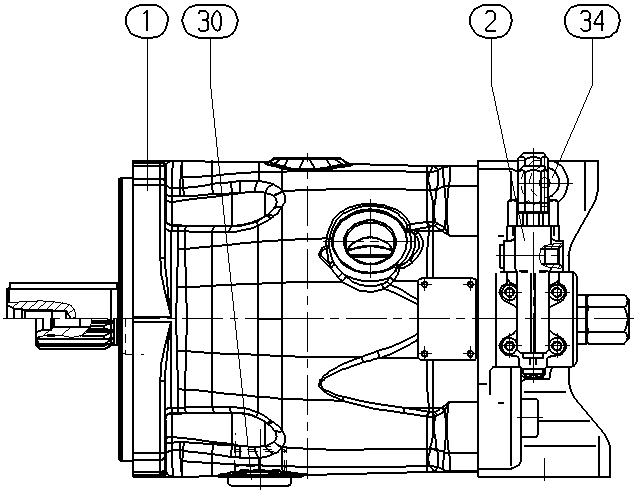

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902436045 | BASE UNIT Assembly parts list →L | 1 | ||
| R902460431 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R909156652 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 100 | 100 |
| Control device | with flow controller X-T plugged | DRS |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885, limited suitability for through drive | P |
| Mounting flange | ISO 3019-2; 4-hole | B |
| Port | SAE flange ports fastening thread, top, bottom, opposite metric. | 12 |
| Through drive | without through drive | N00 |
| Rotary group version | High-speed with port plate version 22U | S |
