Unit · PUMP COMBINATION
A11VLO210L5S4AP0/40MR+A1VO035D4A2P0/10&R902531189
Pump combination Bosch Rexroth series A11VO, type code A11VLO210L5S4AP0/40MR+A1VO035D4A2P0/10&, material number R902531189. Nominal size: NG 210. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO).
- Number
- R902531189
- Type code
- A11VLO210L5S4AP0/40MR+A1VO035D4A2P0/10&
- Group
- A11VLO 210
- Edition
- 06/2020

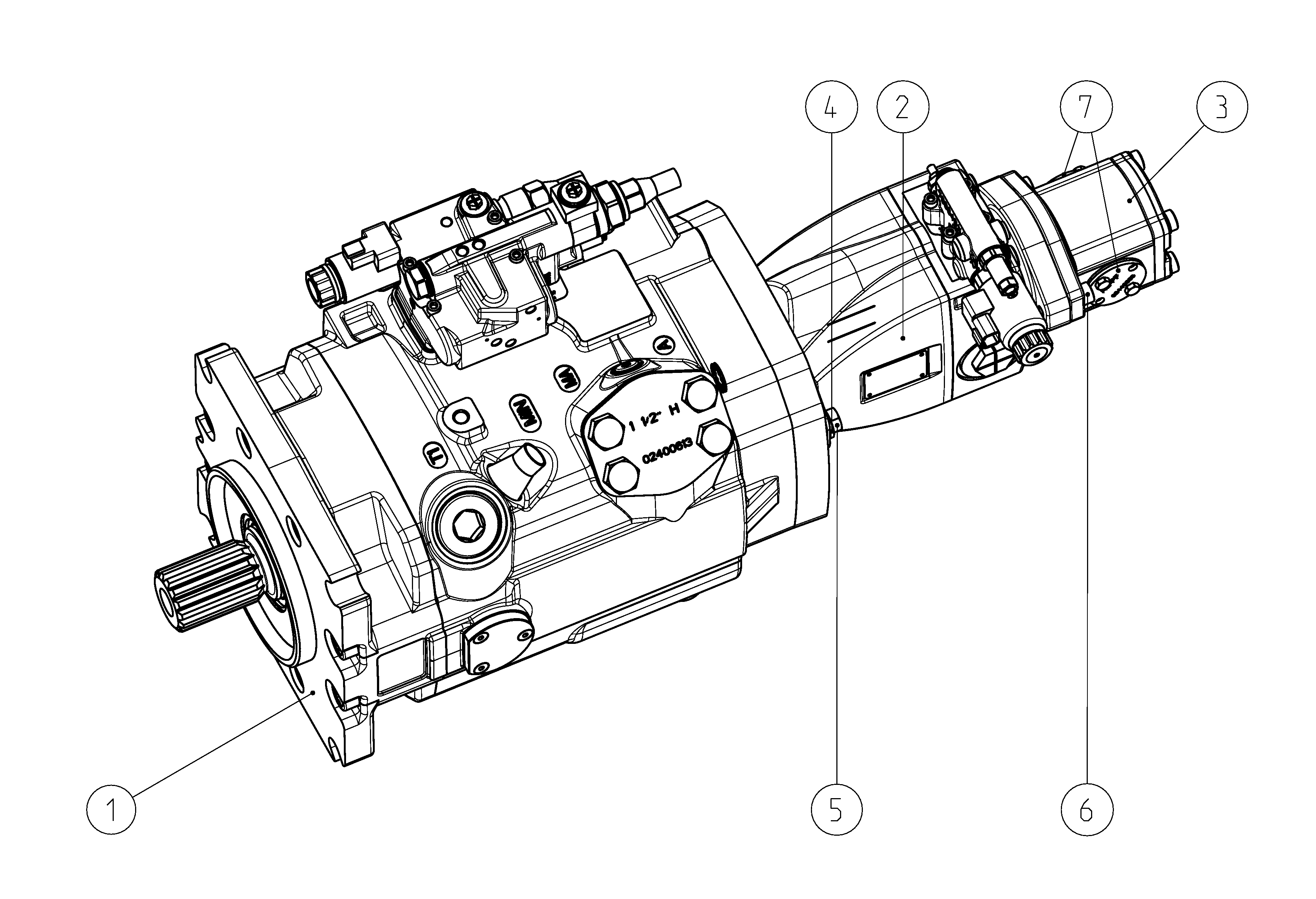

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902531187 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902530968 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510625028 | HYDRAULIC GEAR PUMPL | 1 | ||
| R902650190 | WASHER | 2 | ||
| R910104914 | HEXAGON SCREW | 2 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 | ||
| R902448945 | FLANGE COVER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 210 | 210 |
| Index | Size 40 … 130 | 0 |
