Unit · PUMP COMBINATION
A11VO175E2DGT6BHK/40ML+A10VO63ED72-M270R902533682
Pump combination Bosch Rexroth series A11VO, type code A11VO175E2DGT6BHK/40ML+A10VO63ED72-M270, material number R902533682. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O).
- Number
- R902533682
- Type code
- A11VO175E2DGT6BHK/40ML+A10VO63ED72-M270
- Group
- A10VO 63
- Edition
- 06/2020

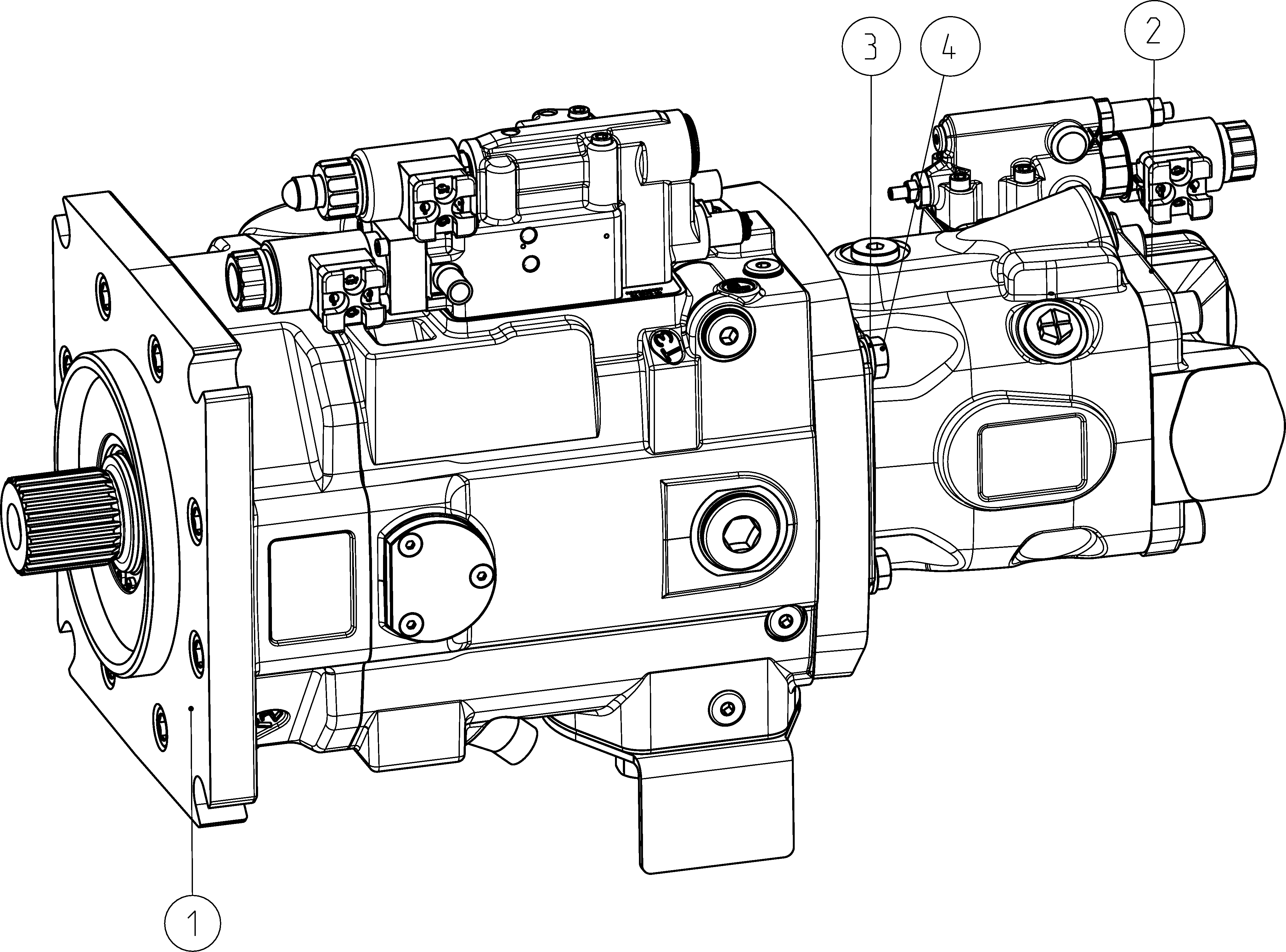

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902533680 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902534360 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R910186732 | WASHER | 4 | ||
| R910104914 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 175 | 175 |
