Unit · AXIAL-PISTON PUMP

P A4VSG 180 HD2G /30R-PPB10KB79FR902534248

Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG180HD2G/30R-PPB10KB79F, material number R902534248. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 180, 4-hole 1 3/4 in 13T 8/16DP (KB7). Valves: SDVB valve block mounted (9). Filtration: filter mounted in the boost circuit (F).

Number: R902534248
Type code: P A4VSG 180 HD2G /30R-PPB10KB79F
Group: A4VSG 180
Edition: 07/2020

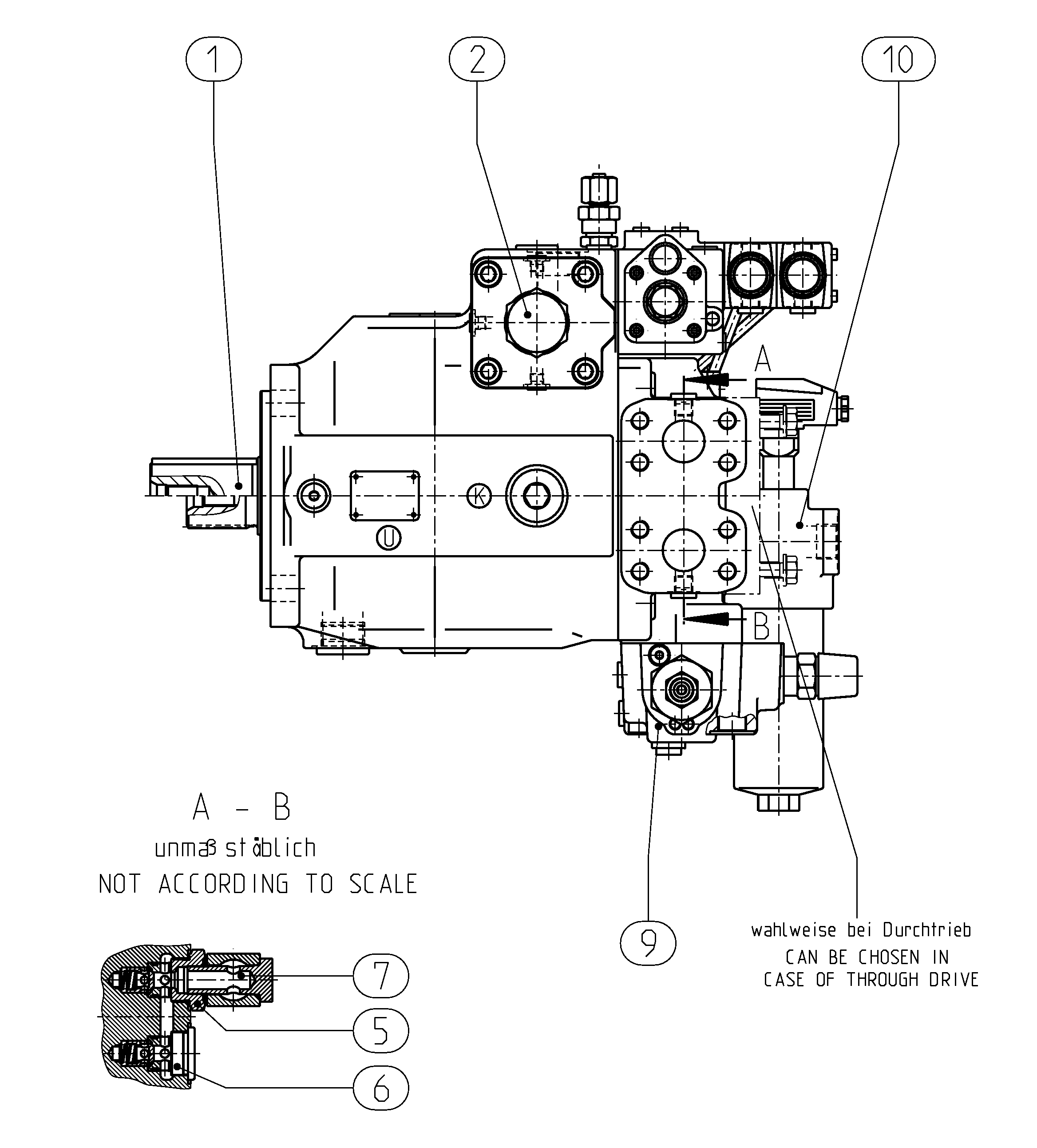

P A4VSG 180 HD2G /30R-PPB10KB79F — Drawing

Pos.	Number	Name	Qty
	R902533037	BASE UNIT Assembly parts list →L	1
	R902534247	CONTROL Assembly parts list →L	1
	R910951234	VALVE MOUNTING KIT	1
	R910929298	VALVE MOUNTING KIT	1
	R910951358	CONNECTING BLOCK Assembly parts list →L	1
	R910927508	VALVE BLOCK Assembly parts list →L	1
	R910964344	FILTER Assembly parts list →L	1
61	R902421947	SHIPPING PROTECTION	2
62	R902602013	SEAL SCREW	1
64	R909831380	GUARD PLUG	1
65	R902602011	SEAL SCREW	1
71	R902538905	FLANGE COVER Assembly parts list →L	1
81	R910723126	PLUG	1
82	R902602008	SEAL SCREW	4

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 350 bar, maximum pressure	A4VS
Operating mode	Pump, closed circuit	G
Size (NG)	180	180
Series	Series 3, index 0	30
Direction of rotation	Viewed on drive shaft clockwise	R
Drive shaft	Parallel keyed shaft DIN 6885	P
Mounting flange	Based on ISO 3019-2 metric 4-hole	B
Working port	SAE flange ports A and B, located on same side, metric fastening thread	10
Through-drive	180, 4-hole 1 3/4 in 13T 8/16DP	KB7
Valves	SDVB valve block mounted	9
Filtration	Filter mounted in the boost circuit	F
