Unit · PUMP COMBINATION
A11VO145L5S4AP0/40MR+AZPFF-11-011/011R&R902535690
Pump combination Bosch Rexroth series A11VO, type code A11VO145L5S4AP0/40MR+AZPFF-11-011/011R&, material number R902535690. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O).
- Number
- R902535690
- Type code
- A11VO145L5S4AP0/40MR+AZPFF-11-011/011R&
- Group
- A11VO 145
- Edition
- 06/2020

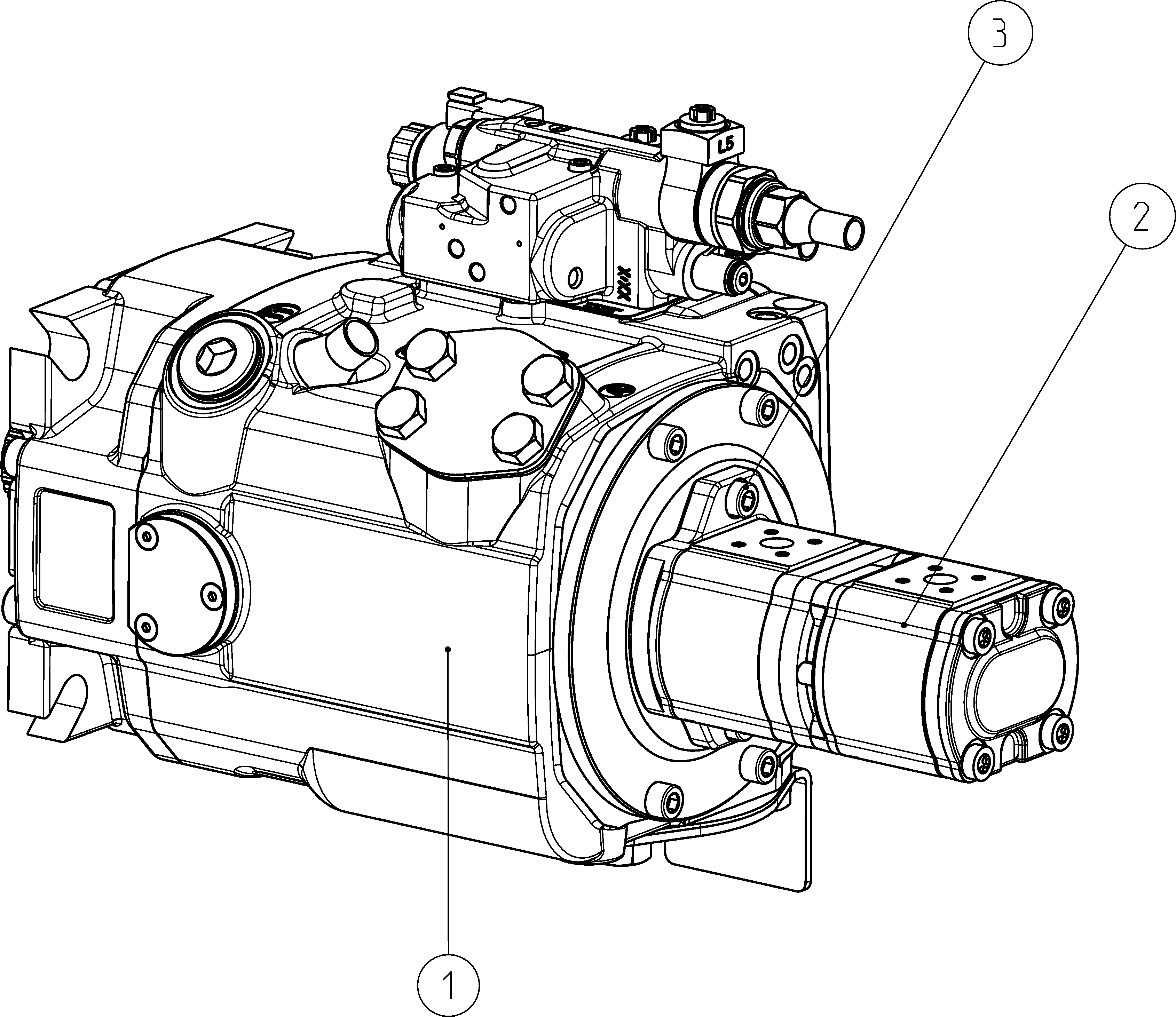

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902535688 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510565116 | HYDRAULIC GEAR PUMPL | 1 | ||
| R910109606 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 145 | 145 |
| Index | Size 40 … 130 | 0 |
