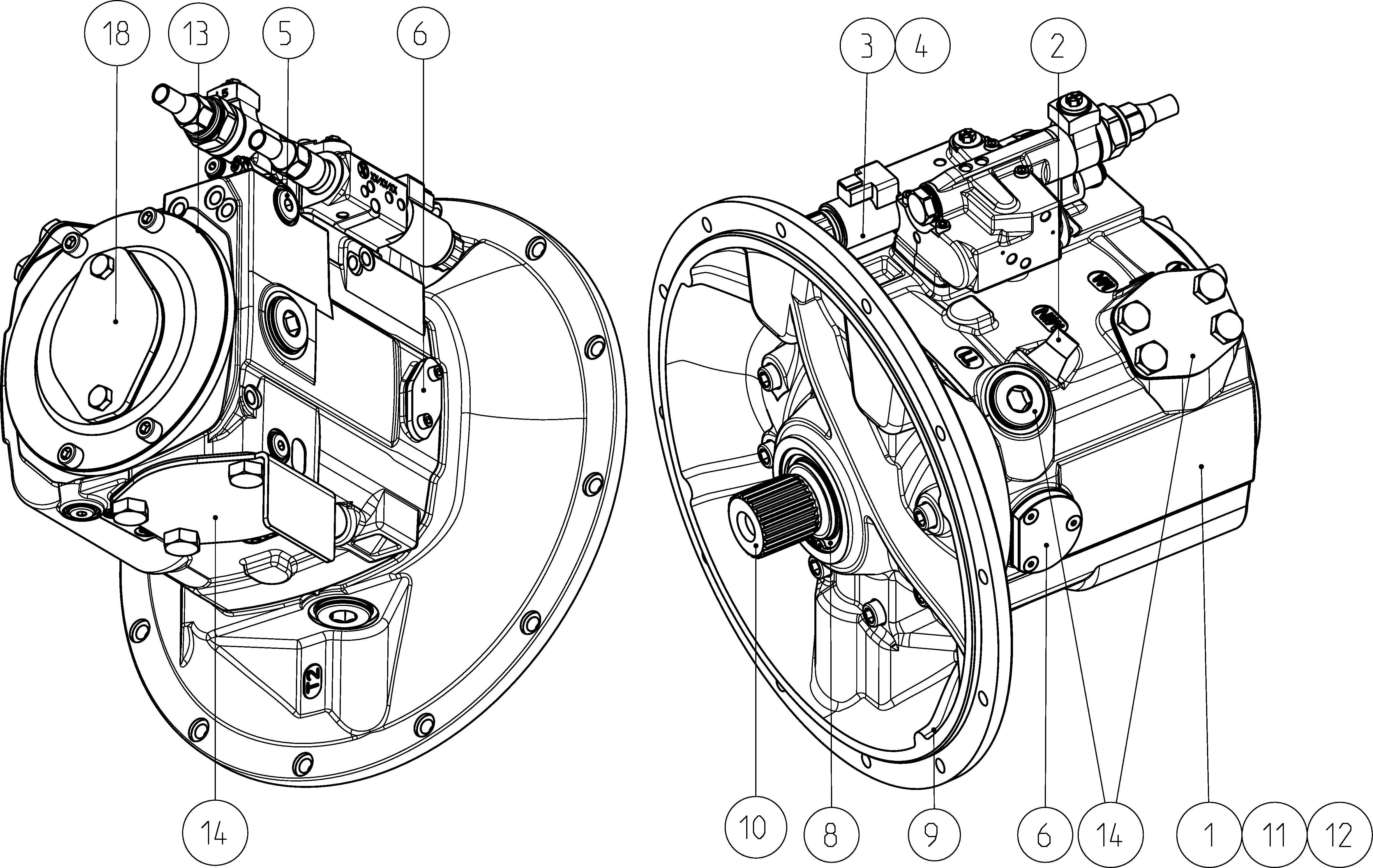

Unit · AXIAL-PISTON PUMP
LA11VO145L5S4AP0/40MRVG3A21EA1S20-0R902536142
Axial piston pump Bosch Rexroth series A11VO, type code LA11VO145L5S4AP0/40MRVG3A21EA1S20-0, material number R902536142. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: SAE J (SAE 3) (G).
- Number
- R902536142
- Type code
- LA11VO145L5S4AP0/40MRVG3A21EA1S20-0
- Group
- A11VO 145
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902535346 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 145 | 145 |
| Index | Size 40 … 130 | 0 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | SAE J (SAE 3) | G |
