Unit · BASE UNIT
G A10V O 63 DR /53R-VUC11N00 LR -S2895R902536458
Base unit Bosch Rexroth series A10VO, type code GA10VO63DR/53R-VUC11N00LR-S2895, material number R902536458. Nominal size: NG 63. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive (11). Through drive: without through drive (N00).
- Number
- R902536458
- Type code
- G A10V O 63 DR /53R-VUC11N00 LR -S2895
- Group
- A10VO 63
- Edition
- 06/2020

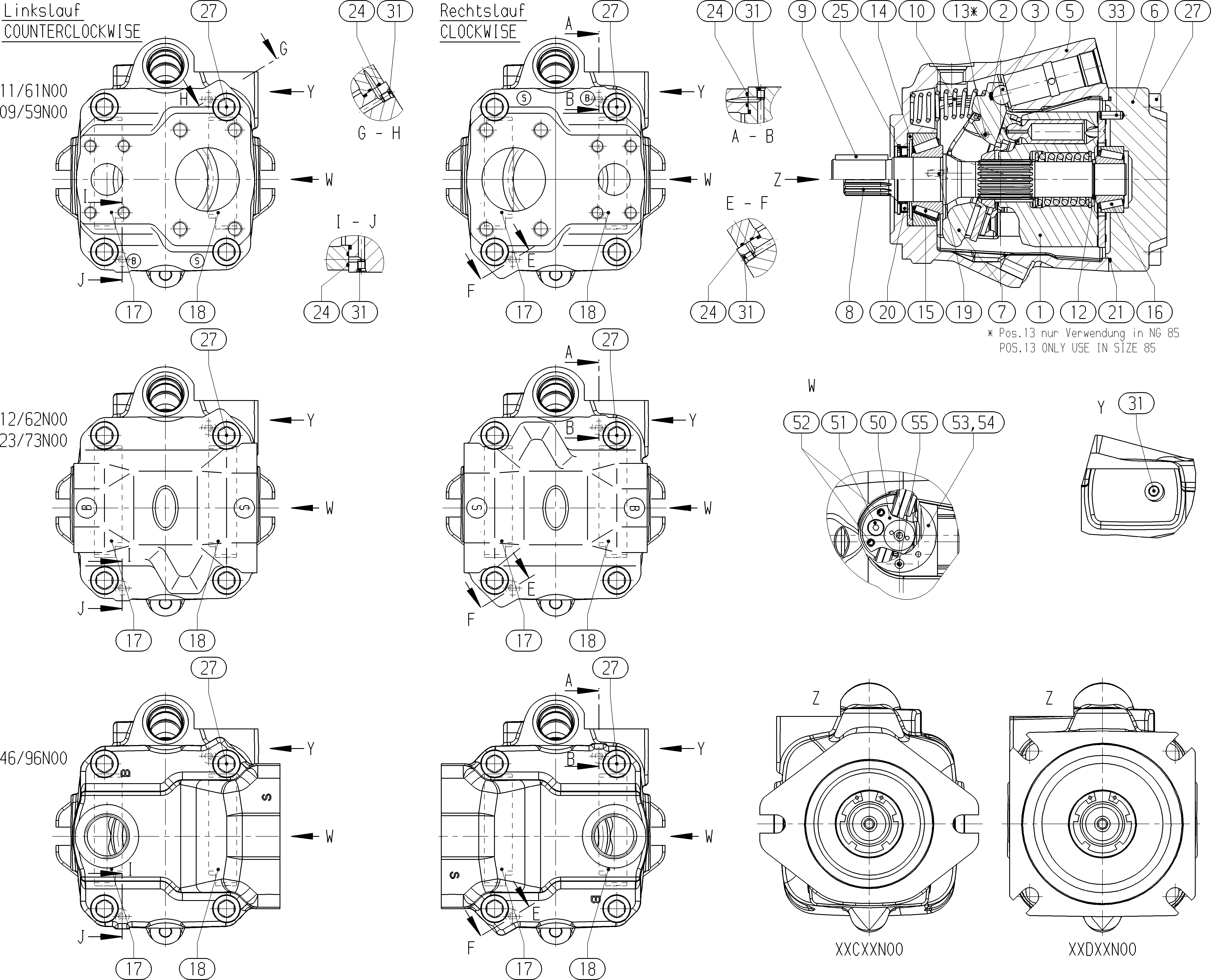

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902454130 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902473753 | COMPRESSION SPRING | 1 | ||
| R910984014 | BALL STOP | 1 | ||
| R902480663 | PUMP HOUSING | 1 | ||
| R910979582 | CONNECTION PLATE | 1 | ||
| R902421567 | SWASH PLATE | 1 | ||
| R910992482 | DRIVE SHAFT | 1 | ||
| R902422349 | COMPRESSION SPRING | 1 | ||
| R910966528 | ADJUSTMENT SHIM | 1 | ||
| R910989235 | STOP RING | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910973501 | TAPERED-ROLLER BEARING | 1 | ||
| R902424620 | BEARING SHELL | 1 | ||
| R902424619 | BEARING SHELL | 1 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R909831661 | SHAFT SEALING RINGD | 1 | ||
| R913050498 | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 2 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910604976 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902482486 | ADAPTER PLATE | 1 | ||
| 2910130191 | SOCKET HEAD CAP SCREW | 1 | ||
| R910585351 | STRAIGHT PIN | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 63 | 63 |
| Control device | Pressure controller hydraulic | DR |
| Series | Series 5, index 3 | 53 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports fastening thread metric rear according to ISO 6162 metric not for through drive | 11 |
| Through drive | Without through drive | N00 |
