Unit · CONTROL

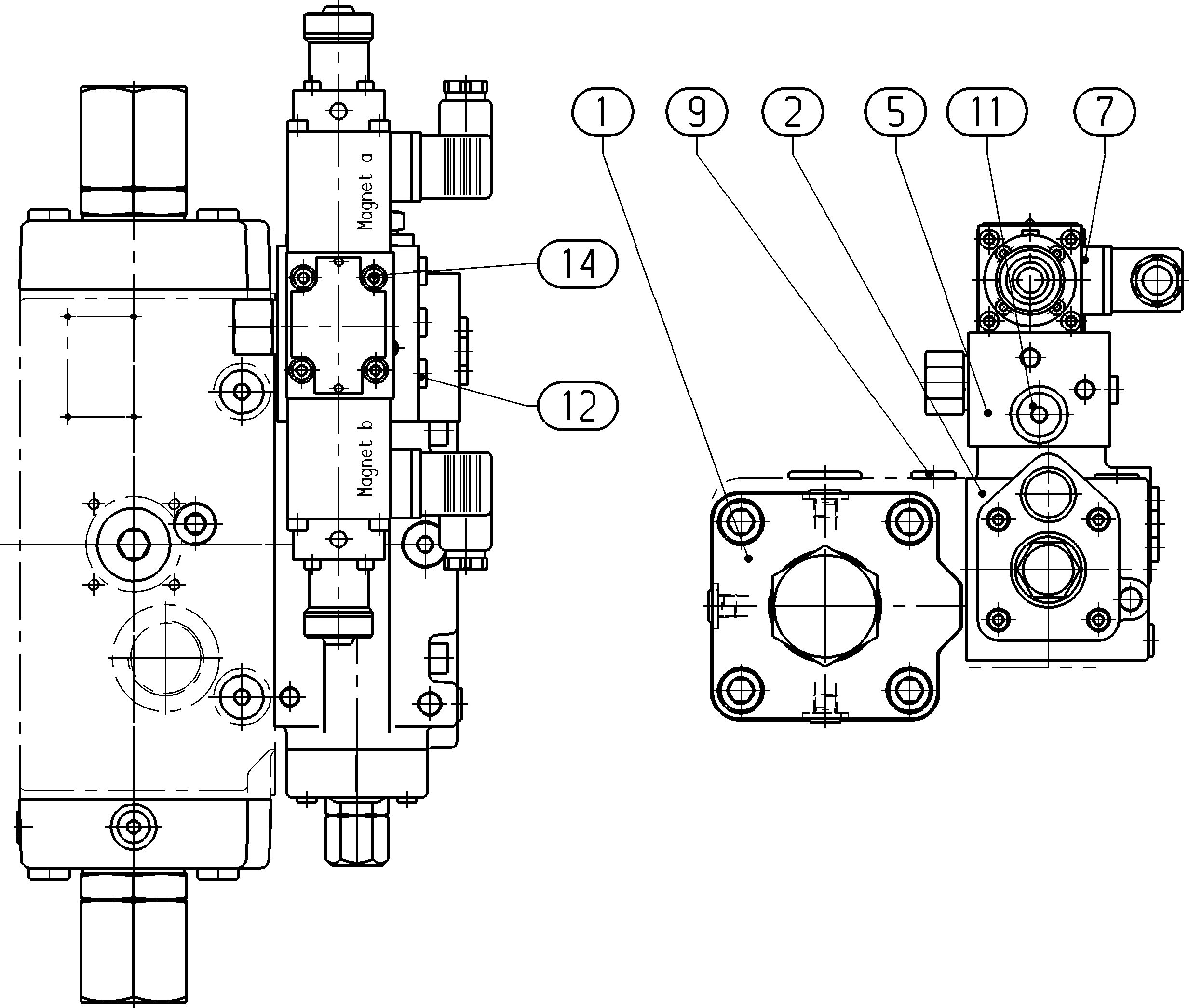

V A4VSG 125/180 HD1T/30X-VR902536700
Control Bosch Rexroth series A4VSO, type code VA4VSG125/180HD1T/30X-V, material number R902536700. Nominal size: NG 125. Axial piston unit: swashplate design (A4VSG). Control device: pilot pressure characteristics 10...45 bar (1).
- Number
- R902536700
- Type code
- V A4VSG 125/180 HD1T/30X-V
- Group
- A4VSG 125
- Edition
- 07/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902401809 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910992873 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910989092 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902405796 | PROPORTIONAL PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R909153930 | SCREW PLUG | 2 | ||
| R909156863 | SCREW PLUG | 3 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 125 | 125 |
| Control device | Pilot pressure characteristics 10...45 bar | 1 |
| 80 | 80 | |
| Series | Series 3, index 0 | 30 |
