Unit · AXIAL-PISTON PUMP
LA11VO210L5E2APK/40DRVG3A21EC3Z80-0R902536777
Axial piston pump Bosch Rexroth series A11VO, type code LA11VO210L5E2APK/40DRVG3A21EC3Z80-0, material number R902536777. Nominal size: NG 210. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: SAE J (SAE 3) (G).
- Number
- R902536777
- Type code
- LA11VO210L5E2APK/40DRVG3A21EC3Z80-0
- Group
- A11VO 210
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|

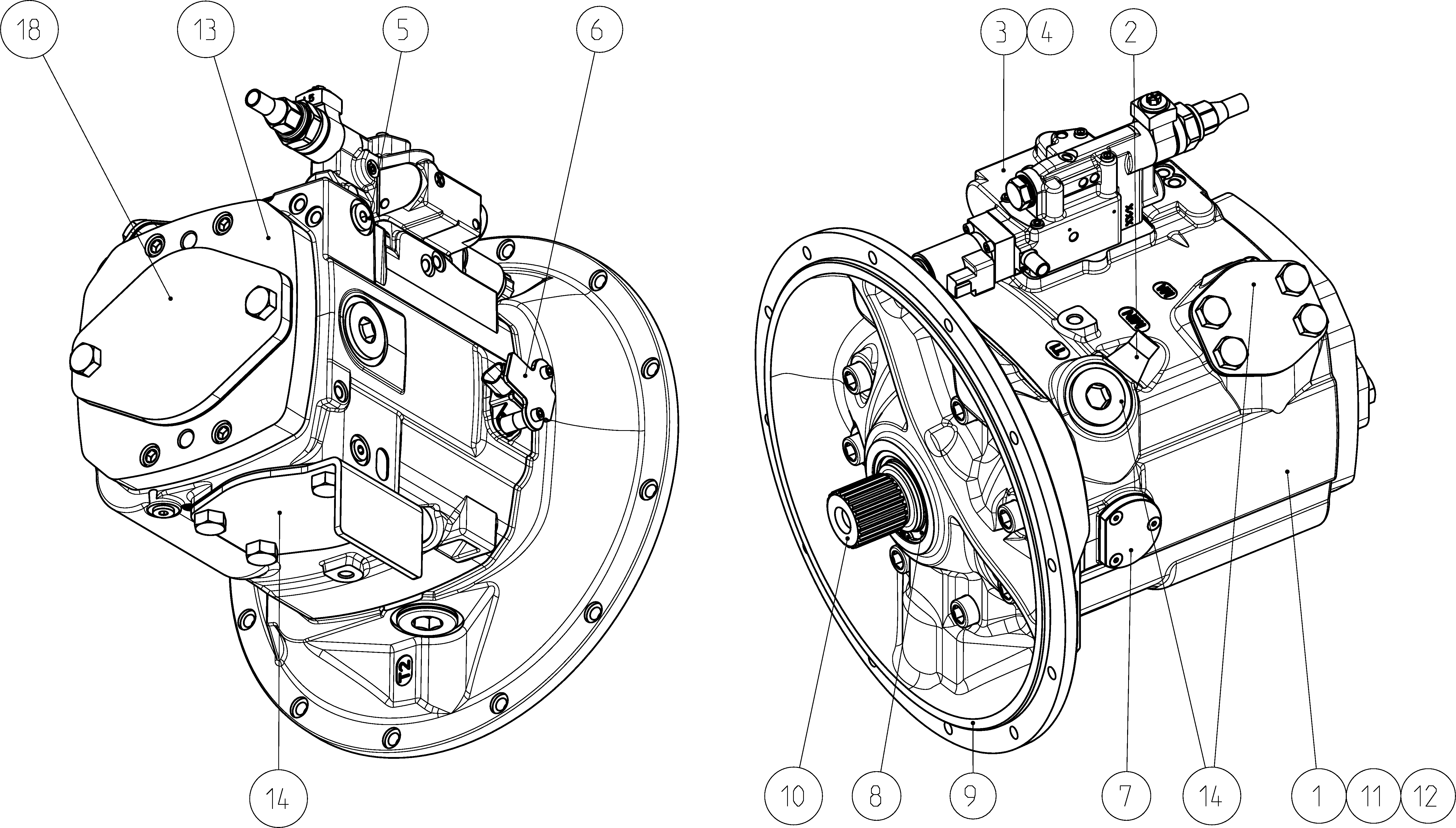

| R902536778 | AXIAL-PISTON PUMP Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 210 | 210 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | SAE J (SAE 3) | G |
